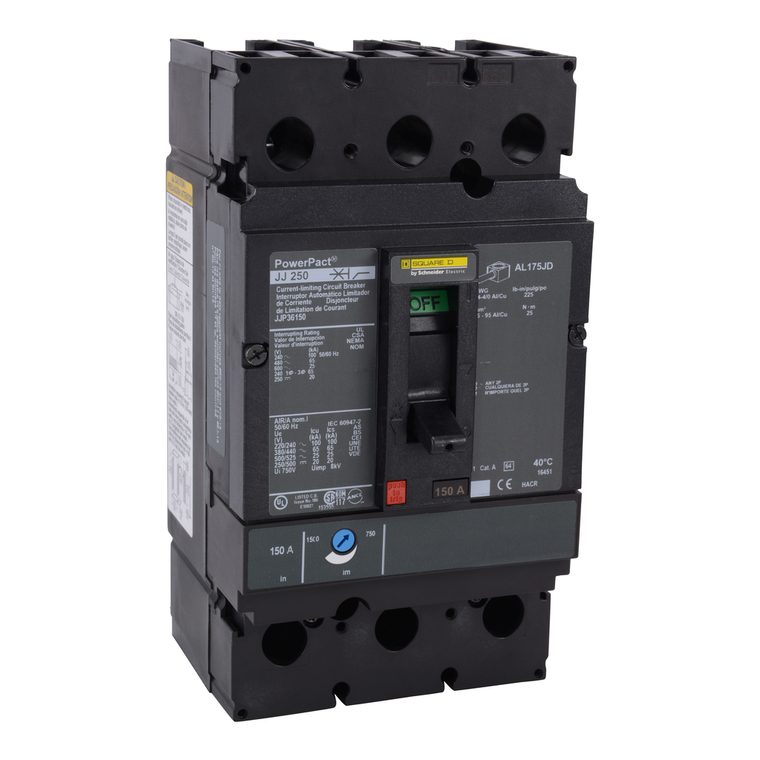

Schneider Electric JGP36250U31X Molded Case Circuit Breaker 600V 250A

Schneider Electric JGP36250U31X Molded Case Circuit Breaker 600V 250A

Schneider Electric
SKU:
JGP36250U31X
|
UPC:
3606486283264
$4,006.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides Micrologic Standard with a 3.2 trip unit and an LI function with a breaking capacity of 18kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This unit has terminal nuts on the line side and lugs on the load side. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Height:
191 mm
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Net Weight:
2.4 kg
Environmental Disclosure:
ENVPEP1311009EN_V2
Circuit Breaker Application:
HACR rated
Ambient Air Temperature For Storage:
-50-85 °C
Ip Degree Of Protection:
front cover IP40
Ambient Air Temperature For Operation:
-2-70 °C
Eu Rohs Directive:
Compliant
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm 1 LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Range:
PowerPact
Phase Connection:
BC
Mounting Height:
4.5 in
Protection Type:
overload protection || short-circuit protection
Utilisation Category:
category A
Pollution Degree:
3 IEC 60947-1
Poles Description:
3P
Width:
104 mm
Rohs Exemption Information:
Yes
Product Certifications:
UL || CSA || NOM
Mounting Support:
lug
Suitability For Isolation:
yes IEC 60947-2
Product Or Component Type:
circuit breaker
Control Type:
toggle
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Sustainable Offer Status:
Green Premium product
Wire Stripping Length:
25 mm
Communication Interface:
Modbus || Ethernet
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Line Rated Current:
250-250 A
Depth:
86 mm
Electrical Connection:
terminal nut, line || lugs, load
Tightening Torque:
25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Mercury Free:
Yes
Pvc Free:
Yes
Breaking Capacity Code:
G
Network Frequency:
50/60 Hz
Quality Labels:
CE
Circularity Profile:
ENVEOLI1311009EN
Trip Unit Technology:
electronic, standard, MicroLogic 3.2, LI
Mounting Mode:
unit mount lug)
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Device Application:
distribution
Continuous Current Rating:
0.8
Awg Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Product Name:
PowerPact J
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Terminal Identifier:
AL250JD
Trip Unit Name:
MicroLogic 3.2
