Schneider Electric JJA261751 Molded Case Circuit Breaker 600V 175A
Schneider Electric
$4,904.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

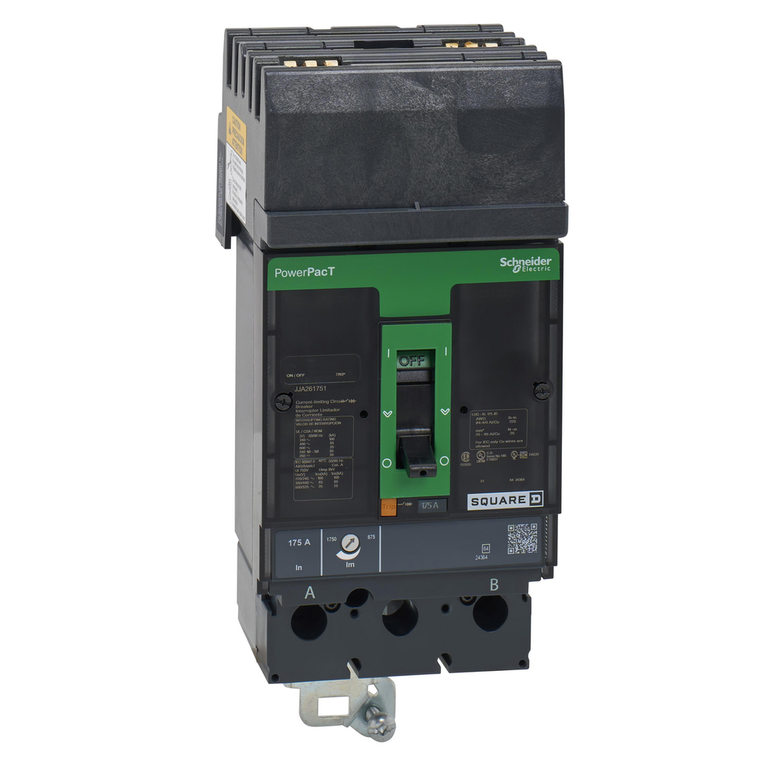

Schneider Electric JJA261751 Molded Case Circuit Breaker 600V 175A
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 175A, 2 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an AB phase connection. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Range:
- PowerPact
- Phase Connection:
- AB
- Warranty:
- 18 months
- Mounting Height:
- 4.5 in
- Magnetic Tripping Current:
- 1750-1750 A
- Ambient Air Temperature For Storage:
- -50-85 °C
- Suitability For Isolation:
- yes IEC 60947-2
- Electrical Connection:
- I-Line connection, line || lugs, load
- Continuous Current Rating:
- 0.8
- Poles Description:
- 2P
- Device Application:
- distribution
- Product Certifications:
- UL || CSA || NOM
- Communication Interface:
- Modbus || Ethernet
- Terminal Identifier:
- AL175JD
- Pvc Free:
- Yes
- Product Or Component Type:
- circuit breaker
- Ambient Air Temperature For Operation:
- -2-70 °C
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Net Weight:
- 2.4 kg
- Mercury Free:
- Yes
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Quality Labels:
- CE
- Sustainable Offer Status:
- Green Premium product
- Utilisation Category:
- category A
- Breaking Capacity Code:
- J
- Wire Stripping Length:
- 25 mm
- Circuit Breaker Application:
- HACR rated
- Mounting Mode:
- I-Line bracket)
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Trip Unit Technology:
- thermal-magnetic
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Product Name:
- PowerPact J
- Magnetic Hold Current:
- 875 A
- Protection Type:
- overload protection || short-circuit protection
- Network Frequency:
- 50/60 Hz
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Tightening Torque:
- 25-25 N.m 25-95 mm² (AWG 4...AWG 4/0)
- Ip Degree Of Protection:
- front cover IP40
- Width:
- 104 mm
- Control Type:
- toggle
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Compliant
- Environmental Disclosure:
- ENVPEP1311008EN
- Circularity Profile:
- ENVEOLI1311008
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Mounting Support:
- bracket
- Depth:
- 86 mm
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Awg Gauge:
- AWG 4...AWG 4/0 aluminium/copper terminal
- Height:
- 191 mm
- Pollution Degree:
- 3 IEC 60947-1
- Line Rated Current:
- 175-175 A
