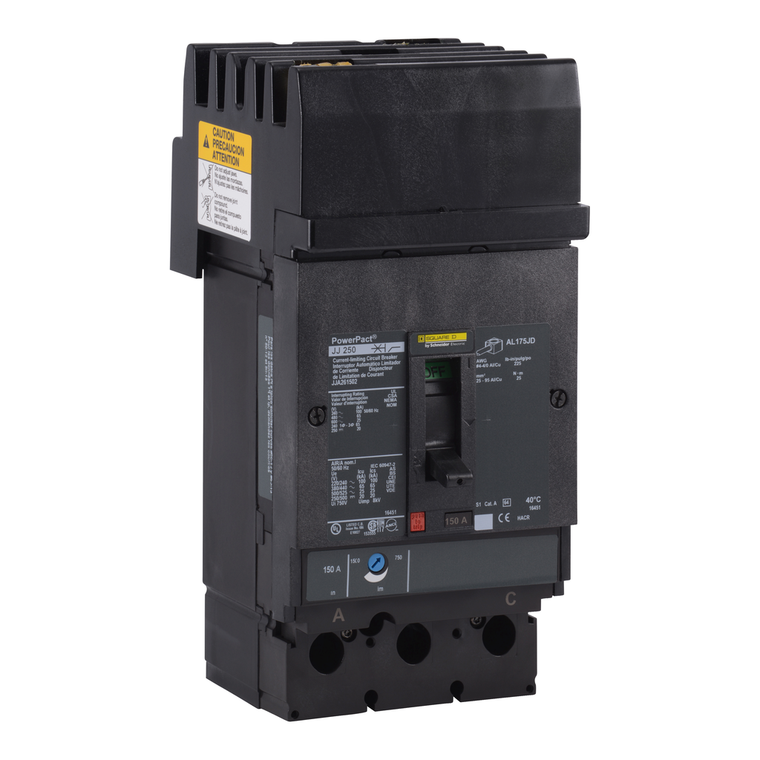

Schneider Electric JJA262004 Molded Case Circuit Breaker 600V 200A

Schneider Electric JJA262004 Molded Case Circuit Breaker 600V 200A

Schneider Electric
SKU:
JJA262004
|
UPC:
7.85902E+11
Availability:
Factory stock
$4,465.66
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 200A, 2 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with a BC phase connection. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Mounting Height:
4.5 in
Breaking Capacity Code:
J
Circularity Profile:
ENVEOLI2206031EN
Trip Unit Technology:
thermal-magnetic
Width:
104 mm
Control Type:
toggle
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Net Weight:
2.4 kg
Pvc Free:
Yes
Ip Degree Of Protection:
front cover IP40
Ambient Air Temperature For Operation:
-2-70 °C
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Network Frequency:
50/60 Hz
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Protection Type:
overload protection || short-circuit protection
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Certifications:
UL || CSA || NOM
Magnetic Hold Current:
1000 A
Local Signalling:
switched off (OFF) 1 trip indicator green)
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Device Application:
distribution
Product Name:
PowerPact J
Wire Stripping Length:
25 mm
Terminal Identifier:
AL250JD
Depth:
86 mm
Circuit Breaker Application:
HACR rated
Environmental Disclosure:
ENVPEP2206031EN
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Mercury Free:
Yes
Electrical Connection:
I-Line connection, line || lugs, load
Range:
PowerPact
Communication Interface:
Modbus || Ethernet
Magnetic Tripping Current:
2000-2000 A
Phase Connection:
BC
Pollution Degree:
3 IEC 60947-1
Sustainable Offer Status:
Green Premium product
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Product Or Component Type:
circuit breaker
Warranty:
18 months
Mounting Support:
bracket
Rohs Exemption Information:
Yes
Height:
191 mm
Mounting Mode:
I-Line bracket)
Eu Rohs Directive:
Compliant with Exemptions
Quality Labels:
CE
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Ambient Air Temperature For Storage:
-50-85 °C
Utilisation Category:
category A
Suitability For Isolation:
yes IEC 60947-2
Poles Description:
2P
Awg Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Breaking Capacity:
100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
Continuous Current Rating:
0.8
Line Rated Current:
200-200 A
Tightening Torque:
25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
