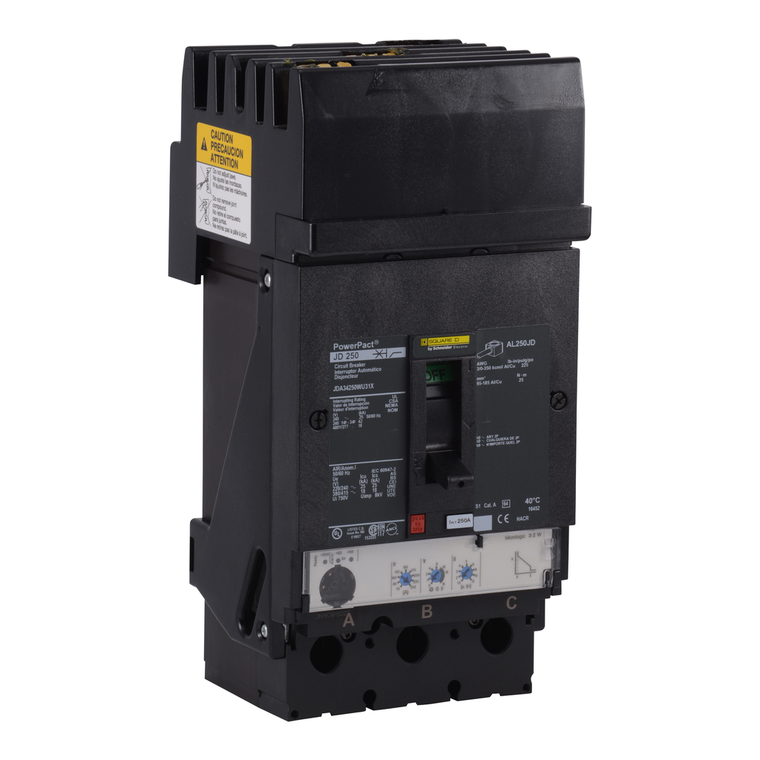

Schneider Electric JJA34250WU31X Molded Case Circuit Breaker 480V 250A

Schneider Electric JJA34250WU31X Molded Case Circuit Breaker 480V 250A

Schneider Electric
SKU:
JJA34250WU31X
|
UPC:
785901949220
Availability:
Factory stock
$4,339.08
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides Micrologic Standard with a 3.2 trip unit and an LI function with a breaking capacity of 65kA at 480VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 65kA at 480VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Breaking Capacity:
100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Breaking Capacity Code:
J
Product Name:
PowerPact J
Ambient Air Temperature For Storage:
-50-85 °C
Ambient Air Temperature For Operation:
-2-70 °C
Utilisation Category:
category A
Protection Type:
overload protection || short-circuit protection
Mercury Free:
Yes
[Ue] Rated Operational Voltage:
480/277 V AC 50/60 Hz IEC 60947-3
Network Frequency:
50/60 Hz
Line Rated Current:
250-250 A
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm 1 LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Circuit Breaker Application:
HACR rated
Range:
PowerPact
Pollution Degree:
3 IEC 60947-1
Wire Stripping Length:
25 mm
Awg Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Terminal Identifier:
AL250JD
Control Type:
toggle
Product Certifications:
UL || CSA || NOM
Ip Degree Of Protection:
front cover IP40
Depth:
86 mm
Product Or Component Type:
circuit breaker
Communication Interface:
Modbus || Ethernet
Mounting Support:
bracket
Height:
191 mm
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Circularity Profile:
ENVEOLI1311009EN
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Suitability For Isolation:
yes IEC 60947-2
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Pvc Free:
Yes
Width:
104 mm
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Electrical Connection:
I-Line connection, line || lugs, load
Trip Unit Name:
MicroLogic 3.2
Eu Rohs Directive:
Compliant
Device Application:
distribution
Quality Labels:
CE
Trip Unit Technology:
electronic, standard, MicroLogic 3.2, LI
Rohs Exemption Information:
Yes
Poles Description:
3P
Mounting Height:
4.5 in
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Environmental Disclosure:
ENVPEP1311009EN_V2
Continuous Current Rating:
0.8
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Mounting Mode:
I-Line bracket)
Tightening Torque:
25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Sustainable Offer Status:
Green Premium product
Net Weight:
2.4 kg
