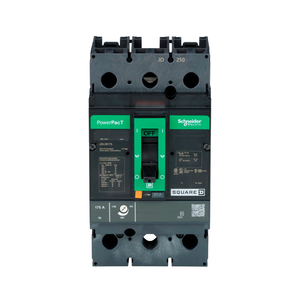

Schneider Electric JJA36175 Molded Case Circuit Breaker 600V 175A
Schneider Electric
$5,705.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric JJA36175 Molded Case Circuit Breaker 600V 175A
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 175A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Environmental Disclosure:
- ENVPEP2206031EN
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Trip Unit Technology:
- thermal-magnetic
- Magnetic Hold Current:
- 875 A
- Continuous Current Rating:
- 0.8
- Width:
- 104 mm
- Eu Rohs Directive:
- Compliant with Exemptions
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Rohs Exemption Information:
- Yes
- Pvc Free:
- Yes
- Product Certifications:
- UL || CSA || NOM
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Phase Connection:
- ABC
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Breaking Capacity Code:
- J
- Device Application:
- distribution
- Line Rated Current:
- 175-175 A
- Communication Interface:
- Modbus || Ethernet
- Wire Stripping Length:
- 25 mm
- Circuit Breaker Application:
- HACR rated
- Net Weight:
- 2.4 kg
- Magnetic Tripping Current:
- 1750-1750 A
- Suitability For Isolation:
- yes IEC 60947-2
- Ambient Air Temperature For Operation:
- -2-70 °C
- Mounting Support:
- bracket
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Tightening Torque:
- 25-25 N.m 25-95 mm² (AWG 4...AWG 4/0)
- Height:
- 191 mm
- Network Frequency:
- 50/60 Hz
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Product Name:
- PowerPact J
- Product Or Component Type:
- circuit breaker
- Range:
- PowerPact
- Ambient Air Temperature For Storage:
- -50-85 °C
- Quality Labels:
- CE
- Poles Description:
- 3P
- Sustainable Offer Status:
- Green Premium product
- Warranty:
- 18 months
- Mounting Mode:
- I-Line bracket)
- Terminal Identifier:
- AL175JD
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Circularity Profile:
- ENVEOLI2206031EN
- Awg Gauge:
- AWG 4...AWG 4/0 aluminium/copper terminal
- Protection Type:
- overload protection || short-circuit protection
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Pollution Degree:
- 3 IEC 60947-1
- Mercury Free:
- Yes
- Utilisation Category:
- category A
- Ip Degree Of Protection:
- front cover IP40
- Depth:
- 86 mm
- Electrical Connection:
- I-Line connection, line || lugs, load
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Mounting Height:
- 4.5 in
