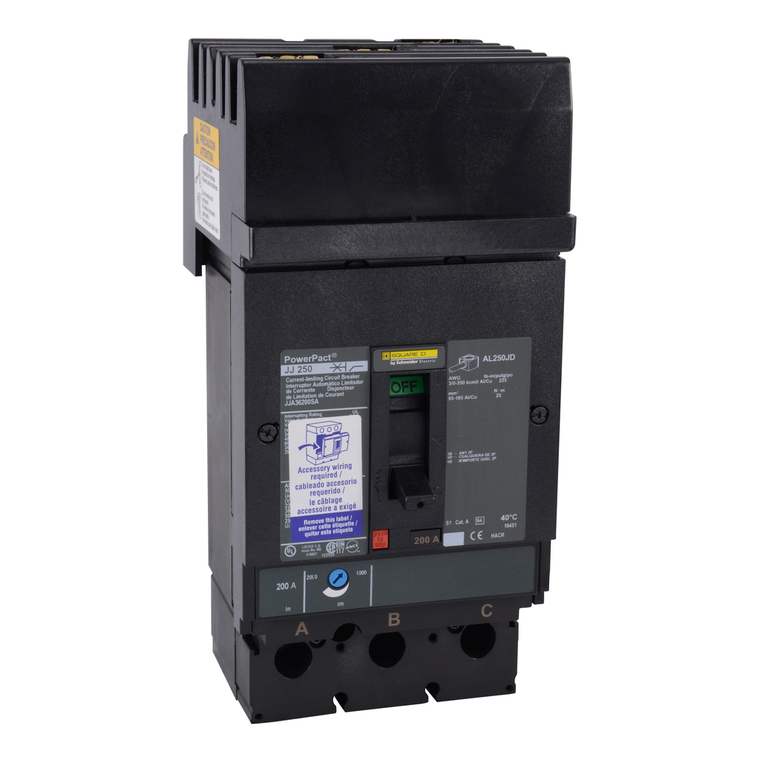

Schneider Electric JJA36250SA Molded Case Circuit Breaker 600V 250A
Schneider Electric
$12,474.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. This unit includes a factory installed 120VAC shunt trip. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Warranty:
- 18 months
- Communication Interface:
- Modbus || Ethernet
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Accessory / Separate Part Type:
- shunt trip 110...130 V AC compartment
- Pollution Degree:
- 3 IEC 60947-1
- Circularity Profile:
- ENVEOLI1311008
- Width:
- 104 mm
- Ip Degree Of Protection:
- front cover IP40
- Protection Type:
- overload protection || short-circuit protection
- Mounting Support:
- bracket
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Environmental Disclosure:
- ENVPEP1311008EN
- Breaking Capacity Code:
- J
- Suitability For Isolation:
- yes IEC 60947-2
- Mercury Free:
- Yes
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Mounting Mode:
- I-Line bracket)
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Depth:
- 86 mm
- Poles Description:
- 3P
- Terminal Identifier:
- AL250JD
- Tightening Torque:
- 25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
- Magnetic Tripping Current:
- 2500-2500 A
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Height:
- 191 mm
- Circuit Breaker Application:
- HACR rated
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Wire Stripping Length:
- 25 mm
- Ambient Air Temperature For Storage:
- -50-85 °C
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Product Certifications:
- UL || CSA || NOM
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Ambient Air Temperature For Operation:
- -2-70 °C
- Line Rated Current:
- 250-250 A
- Magnetic Hold Current:
- 1250 A
- Mounting Height:
- 4.5 in
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Pvc Free:
- Yes
- Trip Unit Technology:
- thermal-magnetic
- Rohs Exemption Information:
- Yes
- Awg Gauge:
- AWG 3/0...350 kcmil aluminium/copper terminals
- Utilisation Category:
- category A
- Continuous Current Rating:
- 0.8
- Network Frequency:
- 50/60 Hz
- Product Or Component Type:
- circuit breaker
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Sustainable Offer Status:
- Green Premium product
- Net Weight:
- 2.4 kg
- Eu Rohs Directive:
- Compliant
- Control Type:
- toggle
- Electrical Connection:
- I-Line connection, line || lugs, load
- Product Name:
- PowerPact J
- Quality Labels:
- CE
- Device Application:
- distribution
- Range:
- PowerPact
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
