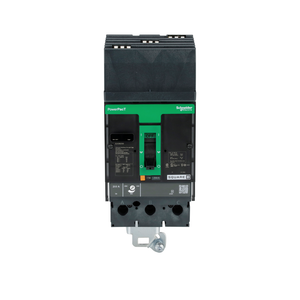

Schneider Electric JJA36250U43X Molded Case Circuit Breaker 600V 250A

Schneider Electric JJA36250U43X Molded Case Circuit Breaker 600V 250A

Schneider Electric
SKU:
JJA36250U43X
|
UPC:
785901084280
Availability:
Contact us to confirm availability and lead times.
$7,150.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides Micrologic Ammeter with a 5.2A trip unit and an LSI function with a breaking capacity of 25kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Mercury Free:
Yes
Range:
PowerPact
Wire Stripping Length:
25 mm
Circuit Breaker Application:
HACR rated
Communication Interface:
Modbus || Ethernet
Product Name:
PowerPact J
Product Or Component Type:
circuit breaker
Control Type:
toggle
Quality Labels:
CE
Ambient Air Temperature For Storage:
-50-85 °C
Rohs Exemption Information:
Yes
Width:
104 mm
Awg Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Trip Unit Technology:
electronic, ammeter, MicroLogic 5.2 A, LSI
Continuous Current Rating:
0.8
Trip Unit Name:
MicroLogic 5.2 A
Mounting Support:
bracket
Breaking Capacity:
100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Eu Rohs Directive:
Compliant with Exemptions
Depth:
86 mm
Tightening Torque:
25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Breaking Capacity Code:
J
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Device Application:
distribution
Warranty:
18 months
Ip Degree Of Protection:
front cover IP40
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Certifications:
UL || CSA || NOM
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Circularity Profile:
ENVEOLI2206032EN
Mounting Height:
4.5 in
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Pollution Degree:
3 IEC 60947-1
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Pvc Free:
Yes
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Utilisation Category:
category A
Electrical Connection:
I-Line connection, line || lugs, load
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm 1 LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Sustainable Offer Status:
Green Premium product
Poles Description:
3P
Protection Type:
overload protection || short-circuit protection
Net Weight:
2.4 kg
Terminal Identifier:
AL250JD
Height:
191 mm
Suitability For Isolation:
yes IEC 60947-2
Environmental Disclosure:
ENVPEP2206032EN
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Network Frequency:
50/60 Hz
Ambient Air Temperature For Operation:
-2-70 °C
Mounting Mode:
I-Line bracket)
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Line Rated Current:
250-250 A
