Schneider Electric JJA36250U44X Molded Case Circuit Breaker 600V 250A
Schneider Electric
$8,231.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

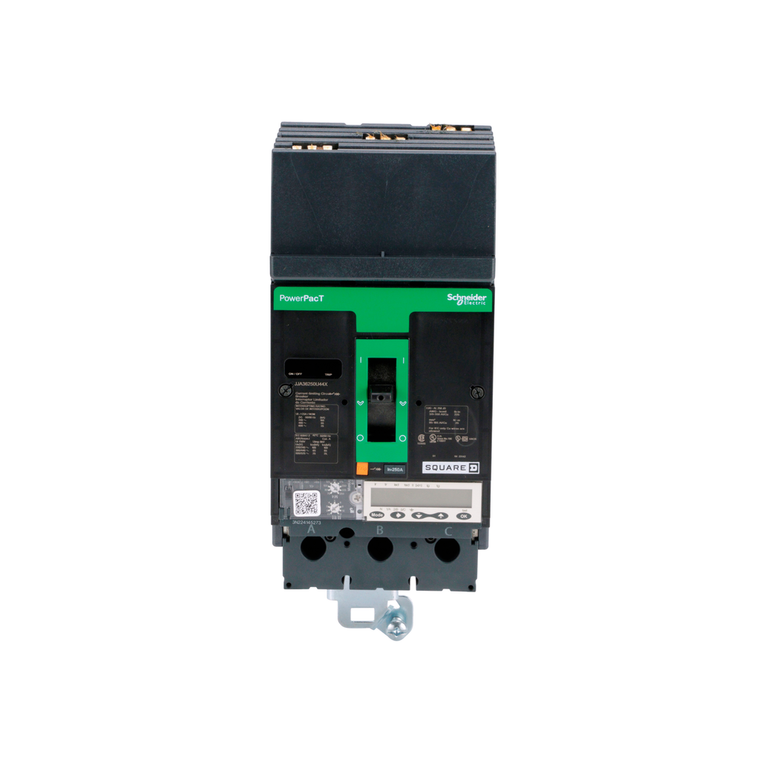

Schneider Electric JJA36250U44X Molded Case Circuit Breaker 600V 250A
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides Micrologic Ammeter with a 6.2A trip unit and an LSIG function with a breaking capacity of 25kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Poles Description:
- 3P
- Utilisation Category:
- category A
- Warranty:
- 18 months
- Width:
- 104 mm
- Ip Degree Of Protection:
- front cover IP40
- Control Type:
- toggle
- Trip Unit Name:
- MicroLogic 6.2 A
- Awg Gauge:
- AWG 3/0...350 kcmil aluminium/copper terminals
- Tightening Torque:
- 25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
- Circuit Breaker Application:
- HACR rated
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Mounting Height:
- 4.5 in
- Depth:
- 86 mm
- Circularity Profile:
- ENVEOLI2206032EN
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Ambient Air Temperature For Storage:
- -50-85 °C
- Trip Unit Technology:
- electronic, ammeter, MicroLogic 6.2 A, LSIG
- Rohs Exemption Information:
- Yes
- Product Name:
- PowerPact J
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Protection Type:
- overload protection || short-circuit protection
- Product Certifications:
- UL || CSA || NOM
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Compliant with Exemptions
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Range:
- PowerPact
- Network Frequency:
- 50/60 Hz
- Phase Connection:
- AC
- Environmental Disclosure:
- ENVPEP2206032EN
- Pvc Free:
- Yes
- Device Application:
- distribution
- Sustainable Offer Status:
- Green Premium product
- Continuous Current Rating:
- 0.8
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Suitability For Isolation:
- yes IEC 60947-2
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Ambient Air Temperature For Operation:
- -2-70 °C
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Wire Stripping Length:
- 25 mm
- Local Signalling:
- ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm 1 LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
- Breaking Capacity Code:
- J
- Mounting Mode:
- I-Line bracket)
- Line Rated Current:
- 250-250 A
- Terminal Identifier:
- AL250JD
- Pollution Degree:
- 3 IEC 60947-1
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Quality Labels:
- CE
- Electrical Connection:
- I-Line connection, line || lugs, load
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Communication Interface:
- Modbus || Ethernet
- Height:
- 191 mm
- Mounting Support:
- bracket
- Net Weight:
- 2.4 kg
- Product Or Component Type:
- circuit breaker
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
