Schneider Electric JJL26150 Molded Case Circuit Breaker 600V 150A
Schneider Electric
$4,671.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

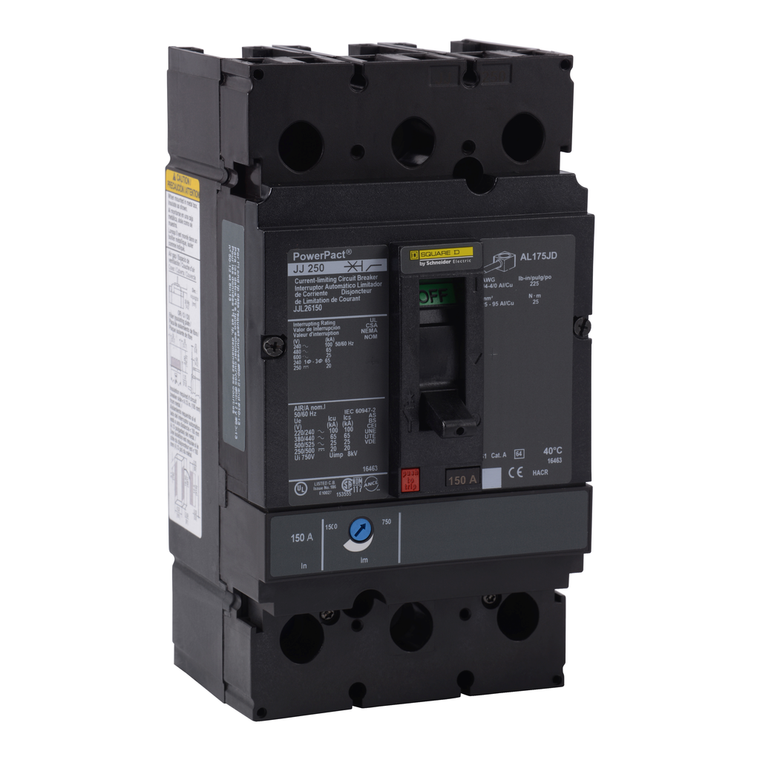

Schneider Electric JJL26150 Molded Case Circuit Breaker 600V 150A
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 150A, 2 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Ip Degree Of Protection:
- front cover IP40
- Circularity Profile:
- ENVEOLI2206031EN
- Mounting Height:
- 4.5 in
- Mounting Mode:
- unit mount lug)
- Product Name:
- PowerPact J
- Protection Type:
- overload protection || short-circuit protection
- Breaking Capacity Code:
- J
- Mounting Support:
- lug
- Circuit Breaker Application:
- HACR rated
- Poles Description:
- 2P
- Ambient Air Temperature For Storage:
- -50-85 °C
- Utilisation Category:
- category A
- Magnetic Hold Current:
- 750 A
- Ambient Air Temperature For Operation:
- -2-70 °C
- Depth:
- 86 mm
- Sustainable Offer Status:
- Green Premium product
- Width:
- 104 mm
- Line Rated Current:
- 150-150 A
- Wire Stripping Length:
- 25 mm
- Product Certifications:
- UL || CSA || NOM
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Terminal Identifier:
- AL175JD
- Network Frequency:
- 50/60 Hz
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Height:
- 191 mm
- Net Weight:
- 2.4 kg
- Quality Labels:
- CE
- Environmental Disclosure:
- ENVPEP2206031EN
- Communication Interface:
- Modbus || Ethernet
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Range:
- PowerPact
- Control Type:
- toggle
- Tightening Torque:
- 25-25 N.m 25-95 mm² (AWG 4...AWG 4/0)
- Rohs Exemption Information:
- Yes
- Suitability For Isolation:
- yes IEC 60947-2
- Awg Gauge:
- AWG 4...AWG 4/0 aluminium/copper terminal
- Device Application:
- distribution
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Warranty:
- 18 months
- Pollution Degree:
- 3 IEC 60947-1
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Phase Connection:
- AB
- Mercury Free:
- Yes
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Eu Rohs Directive:
- Compliant with Exemptions
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Electrical Connection:
- lugs, line || lugs, load
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Magnetic Tripping Current:
- 1750-1750 A
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Pvc Free:
- Yes
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Continuous Current Rating:
- 0.8
- Product Or Component Type:
- circuit breaker
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Trip Unit Technology:
- thermal-magnetic
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
