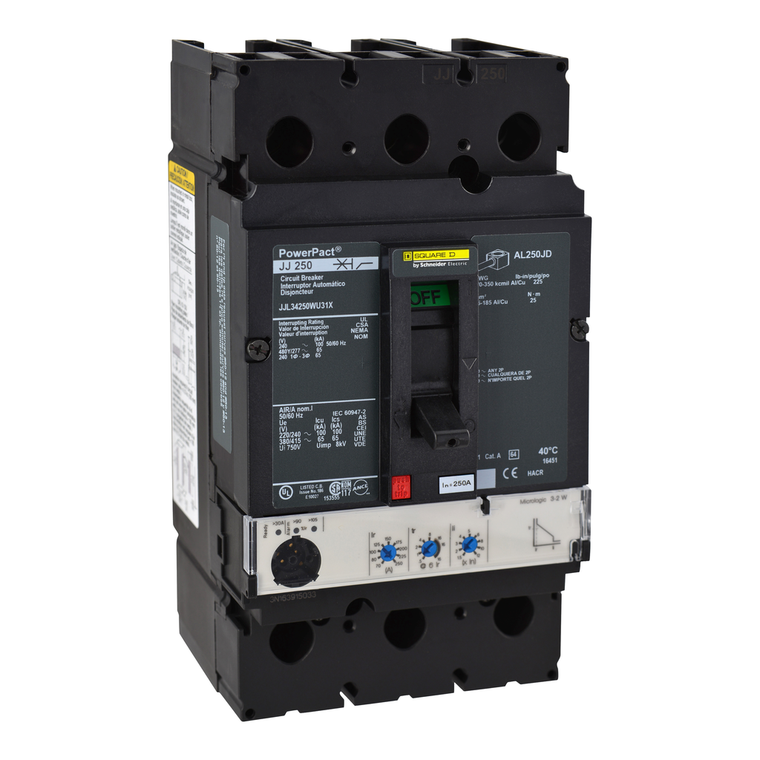

Schneider Electric JJL34250WU31X Molded Case Circuit Breaker 480V 250A
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides Micrologic Standard with a 3.2 trip unit and an LI function with a breaking capacity of 65kA at 480VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 65kA at 480VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Pollution Degree:
- 3 IEC 60947-1
- Net Weight:
- 2.4 kg
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile:
- ENVEOLI2206032EN
- Control Type:
- toggle
- Ambient Air Temperature For Operation:
- -2-70 °C
- Device Application:
- distribution
- Awg Gauge:
- AWG 3/0...350 kcmil aluminium/copper terminals
- Line Rated Current:
- 250-250 A
- [Ue] Rated Operational Voltage:
- 480/277 V AC 50/60 Hz IEC 60947-3
- Wire Stripping Length:
- 25 mm
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Trip Unit Technology:
- electronic, standard, MicroLogic 3.2, LI
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Communication Interface:
- Modbus || Ethernet
- Rohs Exemption Information:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Product Or Component Type:
- circuit breaker
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Ip Degree Of Protection:
- front cover IP40
- Mounting Mode:
- unit mount lug)
- Circuit Breaker Application:
- HACR rated
- Product Name:
- PowerPact J
- Protection Type:
- overload protection || short-circuit protection
- Quality Labels:
- CE
- Phase Connection:
- CA
- Width:
- 104 mm
- Local Signalling:
- ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm 1 LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
- Trip Unit Name:
- MicroLogic 3.2
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Eu Rohs Directive:
- Compliant with Exemptions
- Poles Description:
- 3P
- Range:
- PowerPact
- Electrical Connection:
- lugs, line || lugs, load
- Ambient Air Temperature For Storage:
- -50-85 °C
- Tightening Torque:
- 25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
- Suitability For Isolation:
- yes IEC 60947-2
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Mercury Free:
- Yes
- Environmental Disclosure:
- ENVPEP2206032EN
- Height:
- 191 mm
- Terminal Identifier:
- AL250JD
- Pvc Free:
- Yes
- Mounting Height:
- 4.5 in
- Network Frequency:
- 50/60 Hz
- Continuous Current Rating:
- 0.8
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Depth:
- 86 mm
- Mounting Support:
- lug
- Product Certifications:
- UL || CSA || NOM
- Utilisation Category:
- category A
- Breaking Capacity Code:
- J
