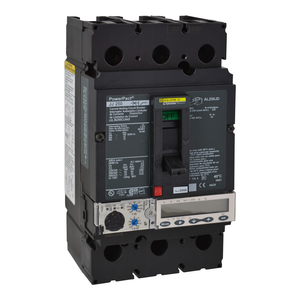

Schneider Electric JJL36250C Molded Case Circuit Breaker 600V 250A

Schneider Electric JJL36250C Molded Case Circuit Breaker 600V 250A

Schneider Electric
SKU:
JJL36250C
|
UPC:
785901823919
Availability:
Factory stock
$5,535.39
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Pollution Degree:
3
Pvc Free:
Yes
Sustainable Offer Status:
Green Premium product
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Height:
191 mm
Control Type:
toggle
Magnetic Hold Current:
1250 A
Line Rated Current:
250-250 A
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Mounting Mode:
unit mount lug)
Environmental Disclosure:
ENVPEP2206031EN
Ambient Air Temperature For Storage:
-50-85 °C
Mercury Free:
Yes
Poles Description:
3P
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Communication Interface:
Modbus
Local Signalling:
switched off (OFF) 1 trip indicator green)
Net Weight:
2.4 kg
Product Or Component Type:
circuit breaker
Eu Rohs Directive:
Compliant with Exemptions
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Wire Stripping Length:
25 mm
Circuit Breaker Application:
HACR rated
Product Certifications:
UL || CSA || NOM
Mounting Support:
lug
Tightening Torque:
25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Magnetic Tripping Current:
2500-2500 A
Awg Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Ambient Air Temperature For Operation:
-2-70 °C
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Quality Labels:
CE
Trip Unit Technology:
thermal-magnetic
Breaking Capacity Code:
J
Width:
104 mm
Continuous Current Rating:
1
Rohs Exemption Information:
Yes
Utilisation Category:
category A
Warranty:
18 months
Terminal Identifier:
AL250JD
Circularity Profile:
ENVEOLI2206031EN
Breaking Capacity:
100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
Ip Degree Of Protection:
front cover IP40
Protection Type:
overload protection || short-circuit protection
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Electrical Connection:
lugs, line || lugs, load
Suitability For Isolation:
yes IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Depth:
86 mm
Network Frequency:
50/60 Hz
