Schneider Electric JJL36250U43X Molded Case Circuit Breaker 600V 250A
Schneider Electric
$6,777.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

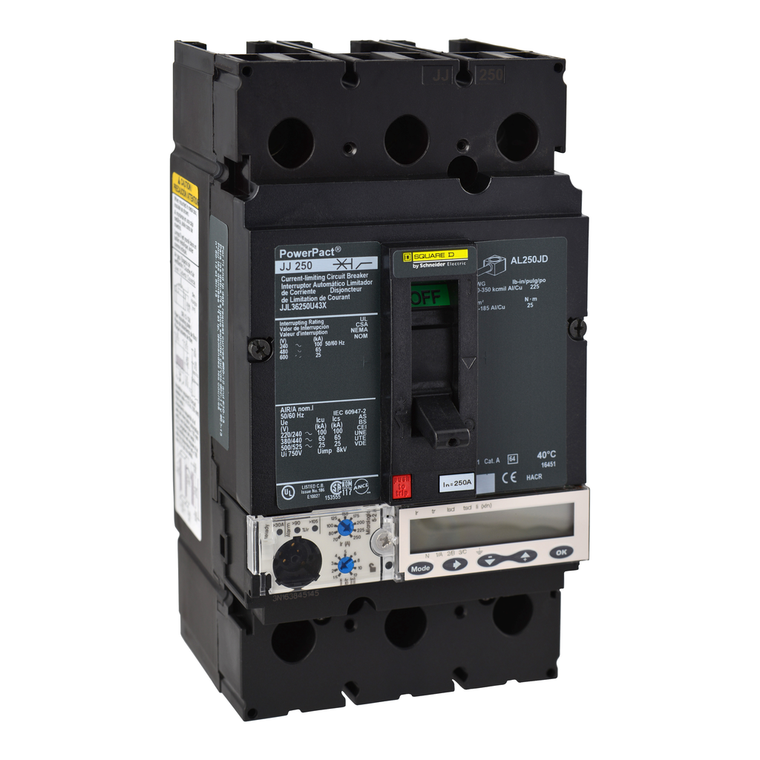

Schneider Electric JJL36250U43X Molded Case Circuit Breaker 600V 250A
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides Micrologic Ammeter with a 5.2A trip unit and an LSI function with a breaking capacity of 25kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Pvc Free:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Eu Rohs Directive:
- Compliant with Exemptions
- Tightening Torque:
- 25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
- Line Rated Current:
- 250-250 A
- Quality Labels:
- CE
- Product Certifications:
- UL || CSA || NOM
- Protection Type:
- overload protection || short-circuit protection
- Rohs Exemption Information:
- Yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage:
- -50-85 °C
- Control Type:
- toggle
- Height:
- 191 mm
- Local Signalling:
- ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm 1 LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
- Awg Gauge:
- AWG 3/0...350 kcmil aluminium/copper terminals
- Product Or Component Type:
- circuit breaker
- Ambient Air Temperature For Operation:
- -2-70 °C
- Trip Unit Name:
- MicroLogic 5.2 A
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Breaking Capacity Code:
- J
- Depth:
- 86 mm
- Circuit Breaker Application:
- HACR rated
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Trip Unit Technology:
- electronic, ammeter, MicroLogic 5.2 A, LSI
- Width:
- 104 mm
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Utilisation Category:
- category A
- Mounting Support:
- lug
- Environmental Disclosure:
- ENVPEP2206032EN
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Poles Description:
- 3P
- Electrical Connection:
- lugs, line || lugs, load
- Warranty:
- 18 months
- Sustainable Offer Status:
- Green Premium product
- Pollution Degree:
- 3
- Continuous Current Rating:
- 0.8
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Wire Stripping Length:
- 25 mm
- Circularity Profile:
- ENVEOLI2206032EN
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Ip Degree Of Protection:
- front cover IP40
- Terminal Identifier:
- AL250JD
- Mercury Free:
- Yes
- Network Frequency:
- 50/60 Hz
- Suitability For Isolation:
- yes IEC 60947-2
- Mounting Mode:
- unit mount lug)
- Communication Interface:
- Modbus
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Net Weight:
- 2.4 kg
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
