Schneider Electric JLA36250U31X Molded Case Circuit Breaker 600V 250A
Schneider Electric
$7,715.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

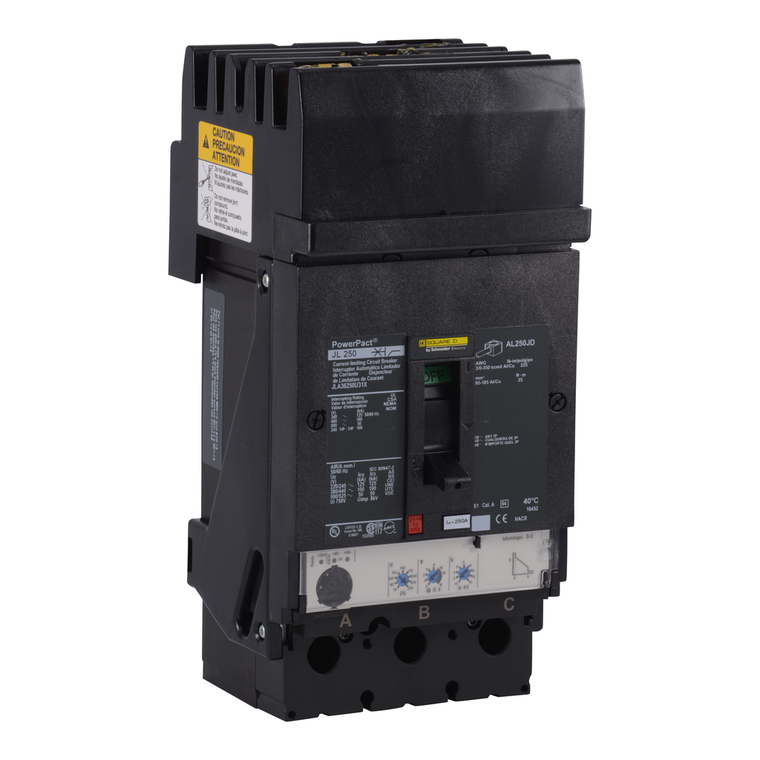

Schneider Electric JLA36250U31X Molded Case Circuit Breaker 600V 250A
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides Micrologic Standard with a 3.2 trip unit and an LI function with a breaking capacity of 50kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 50kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Breaking Capacity:
- 125 kA 240 V AC 50/60 Hz UL 489 || 100 kA 480 V AC 50/60 Hz UL 489 || 50 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 50 kA 500 V DC UL 489
- Phase Connection:
- ABC
- Ambient Air Temperature For Storage:
- -50-85 °C
- Environmental Disclosure:
- ENVPEP2206032EN
- Awg Gauge:
- AWG 3/0...350 kcmil aluminium/copper terminals
- Suitability For Isolation:
- yes IEC 60947-2
- Mounting Mode:
- I-Line bracket)
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Trip Unit Technology:
- electronic, standard, MicroLogic 3.2, LI
- Eu Rohs Directive:
- Compliant with Exemptions
- Width:
- 104 mm
- Rohs Exemption Information:
- Yes
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- [Ics] Rated Service Breaking Capacity:
- 125 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 50 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Circularity Profile:
- ENVEOLI2206032EN
- Trip Unit Name:
- MicroLogic 3.2
- Net Weight:
- 2.4 kg
- Breaking Capacity Code:
- L
- Continuous Current Rating:
- 0.8
- Ambient Air Temperature For Operation:
- -2-70 °C
- Poles Description:
- 3P
- Sustainable Offer Status:
- Green Premium product
- Control Type:
- toggle
- Circuit Breaker Application:
- HACR rated
- Electrical Connection:
- I-Line connection, line || lugs, load
- Ip Degree Of Protection:
- front cover IP40
- Wire Stripping Length:
- 25 mm
- Mercury Free:
- Yes
- Mounting Height:
- 4.5 in
- Product Or Component Type:
- circuit breaker
- Local Signalling:
- ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm 1 LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
- Line Rated Current:
- 250-250 A
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Pvc Free:
- Yes
- Utilisation Category:
- category A
- Mounting Support:
- bracket
- Terminal Identifier:
- AL250JD
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Communication Interface:
- Modbus
- Product Certifications:
- UL || CSA || NOM
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Tightening Torque:
- 25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Depth:
- 86 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Warranty:
- 18 months
- Network Frequency:
- 50/60 Hz
- Quality Labels:
- CE
- Pollution Degree:
- 3
- Protection Type:
- overload protection || short-circuit protection
- Height:
- 191 mm
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
