Schneider Electric JLL36225LY Molded Case Circuit Breaker 600V 225A
Schneider Electric

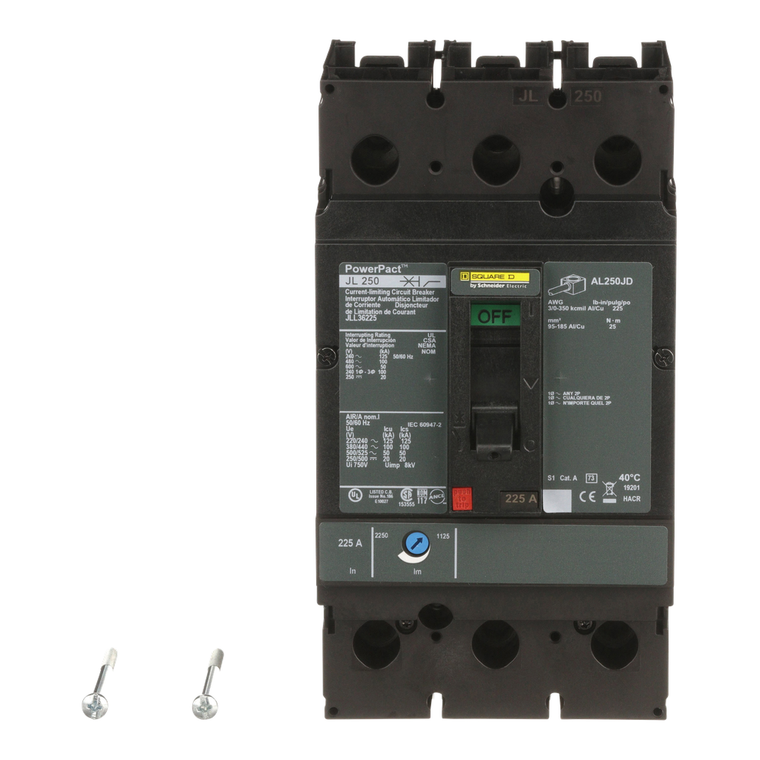

Schneider Electric JLL36225 Molded Case Circuit Breaker 600V 225A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 50kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 225A, 3 pole, circuit breaker has a breaking capacity of 50kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Pollution Degree:
- 3
- Height:
- 191 mm
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Mounting Mode:
- unit mount lug)
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Mounting Support:
- lug
- Pvc Free:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Product Certifications:
- UL || CSA || NOM
- Width:
- 104 mm
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Trip Unit Technology:
- thermal-magnetic
- Wire Stripping Length:
- 25 mm
- [Ics] Rated Service Breaking Capacity:
- 125 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 50 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Suitability For Isolation:
- yes IEC 60947-2
- Poles Description:
- 3P
- Ip Degree Of Protection:
- front cover IP40
- Mercury Free:
- Yes
- Tightening Torque:
- 25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
- Rohs Exemption Information:
- Yes
- Magnetic Hold Current:
- 1125 A
- Protection Type:
- overload protection || short-circuit protection
- Continuous Current Rating:
- 0.8
- Eu Rohs Directive:
- Compliant with Exemptions
- Network Frequency:
- 50/60 Hz
- Environmental Disclosure:
- ENVPEP2206031EN
- Warranty:
- 18 months
- Depth:
- 86 mm
- Circularity Profile:
- ENVEOLI2206031EN
- Product Or Component Type:
- circuit breaker
- Magnetic Tripping Current:
- 2250-2250 A
- Utilisation Category:
- category A
- Circuit Breaker Application:
- HACR rated
- Awg Gauge:
- AWG 3/0...350 kcmil aluminium/copper terminals
- Line Rated Current:
- 225-225 A
- Net Weight:
- 2.4 kg
- Terminal Identifier:
- AL250JD
- Sustainable Offer Status:
- Green Premium product
- Electrical Connection:
- lugs, line || lugs, load
- Ambient Air Temperature For Operation:
- -2-70 °C
- Breaking Capacity Code:
- L
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Ambient Air Temperature For Storage:
- -50-85 °C
- Quality Labels:
- CE
- Communication Interface:
- Modbus
- Control Type:
- toggle
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Breaking Capacity:
- 125 kA 240 V AC 50/60 Hz UL 489 || 100 kA 480 V AC 50/60 Hz UL 489 || 50 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 50 kA 500 V DC UL 489
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
