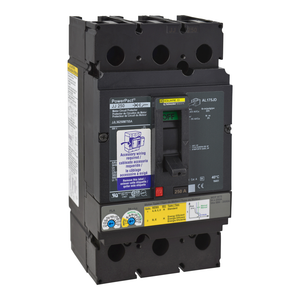

Schneider Electric JLL36250M75 Motor Circuit Protector 600V 250A
Schneider Electric
$2,673.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT J-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. These motor protectors accept the same accessories and terminals as the PowerPacT J circuit breakers. This unit has lugs on both the line and load side. This PowerPacT J, 250A, 3 pole, motor protector has a breaking capacity of 50kA at 600VAC. The breaker has a continuous current rating of 80%. PowerPacT J motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.
- Wire Stripping Length:
- 25 mm
- Ambient Air Temperature For Storage:
- -50-85 °C
- Width:
- 104 mm
- [Ith] Conventional Free Air Thermal Current:
- 117-217 A
- Terminal Identifier:
- AL250JD
- Depth:
- 86 mm
- Ambient Air Temperature For Operation:
- -2-70 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Magnetic Hold Current:
- 1250 A
- Environmental Disclosure:
- ENVPEP2206031EN
- Product Or Component Type:
- Motor Circuit Protector
- Continuous Current Rating:
- 0.8
- Control Type:
- toggle
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Pollution Degree:
- 3
- Poles Description:
- 3P
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Quality Labels:
- CE
- Communication Interface:
- Modbus
- Ip Degree Of Protection:
- front cover IP40
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Warranty:
- 18 months
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Rohs Exemption Information:
- Yes
- Mounting Support:
- lug
- Sustainable Offer Status:
- Green Premium product
- Trip Unit Technology:
- thermal-magnetic
- Eu Rohs Directive:
- Compliant with Exemptions
- Circularity Profile:
- ENVEOLI2206031EN
- Magnetic Tripping Current:
- 2500-2500 A
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Line Rated Current:
- 250-250 A
- Pvc Free:
- Yes
- Product Certifications:
- UL || CSA || NOM
- Electrical Connection:
- lugs, line || lugs, load
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Protection Type:
- overload protection || short-circuit protection
- [Ics] Rated Service Breaking Capacity:
- 125 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 50 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Mercury Free:
- Yes
- Suitability For Isolation:
- yes IEC 60947-2
- Height:
- 191 mm
- Network Frequency:
- 50/60 Hz
- Net Weight:
- 2.4 kg
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Utilisation Category:
- category A
- Tightening Torque:
- 25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
- Breaking Capacity:
- 125 kA 240 V AC 50/60 Hz UL 489 || 100 kA 480 V AC 50/60 Hz UL 489 || 50 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 50 kA 500 V DC UL 489
- Breaking Capacity Code:
- L
- Mounting Mode:
- unit mount lug)
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Awg Gauge:
- AWG 3/0...350 kcmil aluminium/copper terminals
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
