Schneider Electric JLP36250 Molded Case Circuit Breaker 600V 250A
Schneider Electric
$20,234.25
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

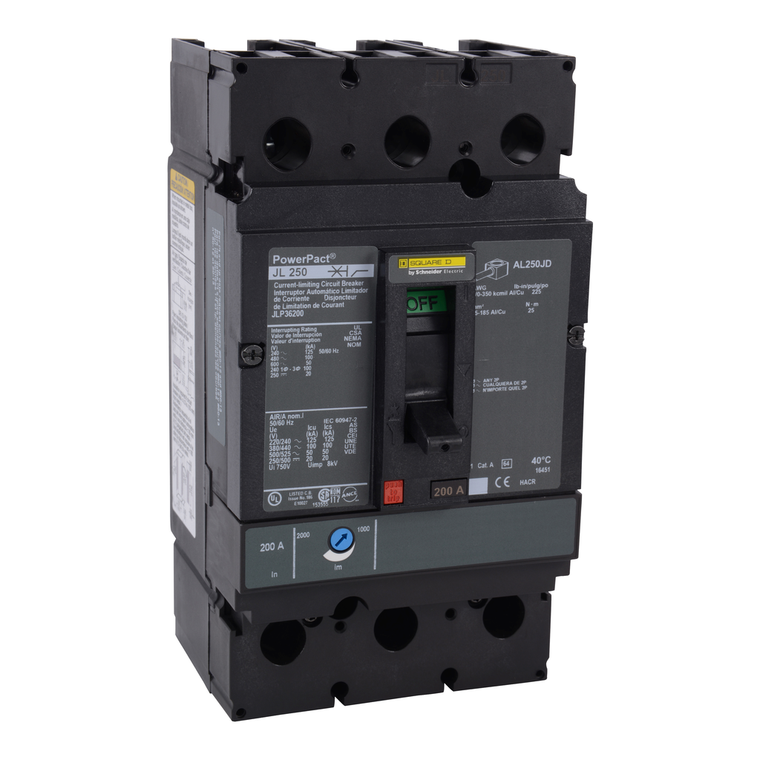

Schneider Electric JLP36250 Molded Case Circuit Breaker 600V 250A
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 50kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This unit has terminal nuts on the line side and lugs on the load side. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 50kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Awg Gauge:
- AWG 3/0...350 kcmil aluminium/copper terminals
- Product Or Component Type:
- circuit breaker
- Suitability For Isolation:
- yes IEC 60947-2
- Ip Degree Of Protection:
- front cover IP40
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Trip Unit Technology:
- thermal-magnetic
- Ambient Air Temperature For Storage:
- -50-85 °C
- Circuit Breaker Application:
- HACR rated
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Breaking Capacity Code:
- L
- Wire Stripping Length:
- 25 mm
- Warranty:
- 18 months
- Ambient Air Temperature For Operation:
- -2-70 °C
- Depth:
- 86 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Circularity Profile:
- ENVEOLI1311008
- Pollution Degree:
- 3
- Protection Type:
- overload protection || short-circuit protection
- Product Certifications:
- UL || CSA || NOM
- Control Type:
- toggle
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Net Weight:
- 2.4 kg
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Breaking Capacity:
- 125 kA 240 V AC 50/60 Hz UL 489 || 100 kA 480 V AC 50/60 Hz UL 489 || 50 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 50 kA 500 V DC UL 489
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Magnetic Tripping Current:
- 2500-2500 A
- Environmental Disclosure:
- ENVPEP1311008EN
- [Ics] Rated Service Breaking Capacity:
- 125 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 50 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Mercury Free:
- Yes
- Pvc Free:
- Yes
- Electrical Connection:
- terminal nut, line || lugs, load
- Terminal Identifier:
- AL250JD
- Magnetic Hold Current:
- 1250 A
- Height:
- 191 mm
- Width:
- 104 mm
- Line Rated Current:
- 250-250 A
- Rohs Exemption Information:
- Yes
- Network Frequency:
- 50/60 Hz
- Utilisation Category:
- category A
- Sustainable Offer Status:
- Green Premium product
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Communication Interface:
- Modbus
- Eu Rohs Directive:
- Compliant
- Tightening Torque:
- 25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
- Continuous Current Rating:
- 0.8
- Mounting Support:
- lug
- Mounting Mode:
- unit mount lug)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Poles Description:
- 3P
- Quality Labels:
- CE
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
