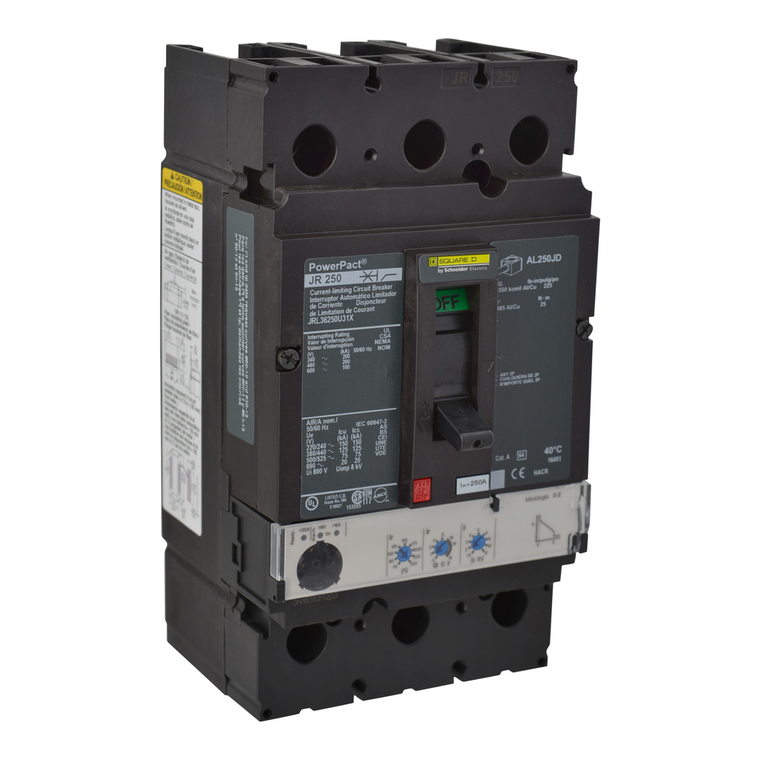

Schneider Electric JRL36250 Molded Case Circuit Breaker 600V 250A

Schneider Electric JRL36250 Molded Case Circuit Breaker 600V 250A

Schneider Electric
SKU:
JRL36250
|
UPC:
7.85902E+11
Availability:
Contact us to confirm availability and lead times.
$11,169.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 100kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 100kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Continuous Current Rating:
0.8
Warranty:
18 months
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Circuit Breaker Application:
HACR rated
Magnetic Tripping Current:
2500-2500 A
[Ics] Rated Service Breaking Capacity:
150 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 125 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 75 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 690 V AC 50/60 Hz IEC 60947-2
Protection Type:
overload protection || short-circuit protection
Tightening Torque:
25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Width:
104 mm
Product Certifications:
UL || CSA || NOM
Ambient Air Temperature For Storage:
-50-85 °C
Product Or Component Type:
circuit breaker
Breaking Capacity:
200 kA 240 V AC 50/60 Hz UL 489 || 200 kA 480 V AC 50/60 Hz UL 489 || 100 kA 600 V AC 50/60 Hz UL 489
Magnetic Hold Current:
1250 A
Sustainable Offer Status:
Green Premium product
Quality Labels:
CE
Local Signalling:
switched off (OFF) 1 trip indicator green)
Poles Description:
3P
Mercury Free:
Yes
Net Weight:
2.4 kg
Ip Degree Of Protection:
front cover IP40
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Rohs Exemption Information:
Yes
Pollution Degree:
3
Ambient Air Temperature For Operation:
-2-70 °C
Height:
191 mm
Communication Interface:
Modbus
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Trip Unit Technology:
thermal-magnetic
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Pvc Free:
Yes
Awg Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Environmental Disclosure:
ENVPEP2206031EN
Terminal Identifier:
AL250JD
Network Frequency:
50/60 Hz
Mounting Support:
lug
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Electrical Connection:
lugs, line || lugs, load
Mounting Mode:
unit mount lug)
Wire Stripping Length:
25 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Suitability For Isolation:
yes IEC 60947-2
Depth:
86 mm
Utilisation Category:
category A
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Eu Rohs Directive:
Compliant with Exemptions
Breaking Capacity Code:
R
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Circularity Profile:
ENVEOLI2206031EN
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Line Rated Current:
250-250 A
Control Type:
toggle
