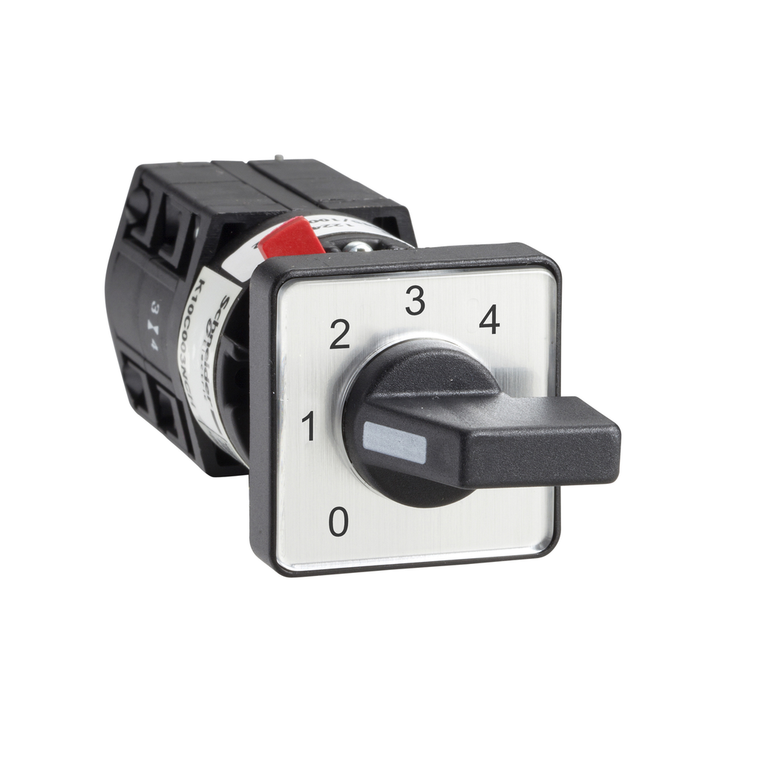

Schneider Electric K10D004QCH Cam Stepping Switch 1 Pole 30° 10 A For

Schneider Electric K10D004QCH Cam Stepping Switch 1 Pole 30° 10 A For

Schneider Electric
SKU:
K10D004QCH
|
UPC:
3389110076578
$105.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Harmony K10 cam stepping switch has 1 pole (1P). It also has a rating of 10A, a screw clamp mounting mode and a metallic color with black marking. It has "0 - 1 - 2 - 3 - 4" marking to indicate the position of the switch. This metal head cam stepping switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 30 degree between its switching positions. IP65 on its front part allows for installation in harsh (heavy) environment or outdoor.
Additional Information
Electrical Durability:
100000000 cycles
[Ui] Rated Insulation Voltage:
440 V 3)IEC 60947-1
Rated Power In Hp:
0.33 hp 110/120 V AC, 1 phase || 0.75 hp 220/240 V AC, 1 phase
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Return:
without
Ip Degree Of Protection:
contact block: IP20 || operating head: IP65 conforming to IEC 60529
Product Mounting:
front mounting
[Uimp] Rated Impulse Withstand Voltage:
4 kV IEC 60947-1
Contact Operation:
slow-break
Presentation Of Legend:
with metallic, 0 - 1 - 2 - 3 - 4 black
Cam Switch Head Type:
with front plate 30 x 30 mm
Electrical Shock Protection Class:
class II IEC 60536
[Ie] Rated Operational Current Ac:
10 A 400 V AC-1 || 10 A 400 V AC-21A || 3 A 240 V AC-15 || 6 A 120 V AC-15
Net Weight:
0.045 kg
Ambient Air Temperature For Operation:
-20-55 °C
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
[Ie] Rated Operational Current Dc:
10 A 24 V resistive || 0.3 A 220 V resistive || 0.7 A 110 V resistive
Electrical Connection:
captive screw clamp terminals 2 x 1.5 mm²
Standards:
CENELEC EN 50013 || EN/IEC 60947-3 || EN/IEC 60947-5-1
Protective Treatment:
TC
Cam Switch Function:
stepping switch
Switching Angle:
30 °
Poles Description:
1P
Rated Operational Power In W:
370 W AC-23A, 110/120 V 1 phase || 750 W AC-23A, 220/240 V 1 phase
Short-Circuit Protection:
10 A cartridge fuse gG
Rotary Handle Padlocking:
without
Mercury Free:
Yes
Warranty:
18 months
Type Of Operator:
Black handle
Ambient Air Temperature For Storage:
-40-70 °C
Toxic Heavy Metal Free:
Yes
Product Or Component Type:
complete cam switch
Number Of Steps:
4
Cad Overall Width:
30 mm
Fixing Mode:
Ø 16 or 22 mm hole
Off Position:
with Off position
China Rohs Regulation:
X
Cad Overall Depth:
88 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Rohs Exemption Information:
Yes
Mechanical Durability:
1000000 cycles
Reach Free Of Svhc:
Yes
Range Of Product:
Harmony K
Product Certifications:
cULus
[Ith] Conventional Free Air Thermal Current:
0.416666666666667
Cad Overall Height:
30 mm
Switching Positions:
right: 270° - 300° - 330° - 0° - 30°
Component Name:
K10
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Datasheet:
View
