Schneider Electric K10F003UCH Cam Changeover Switch 3Pole 60° 10 A Fo

Schneider Electric K10F003UCH Cam Changeover Switch 3Pole 60° 10 A Fo

Schneider Electric
SKU:
K10F003UCH
|
UPC:
3389110076677
$194.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

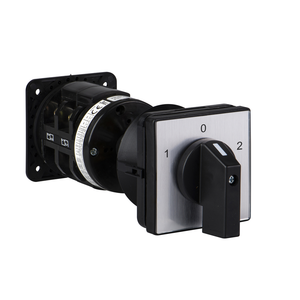

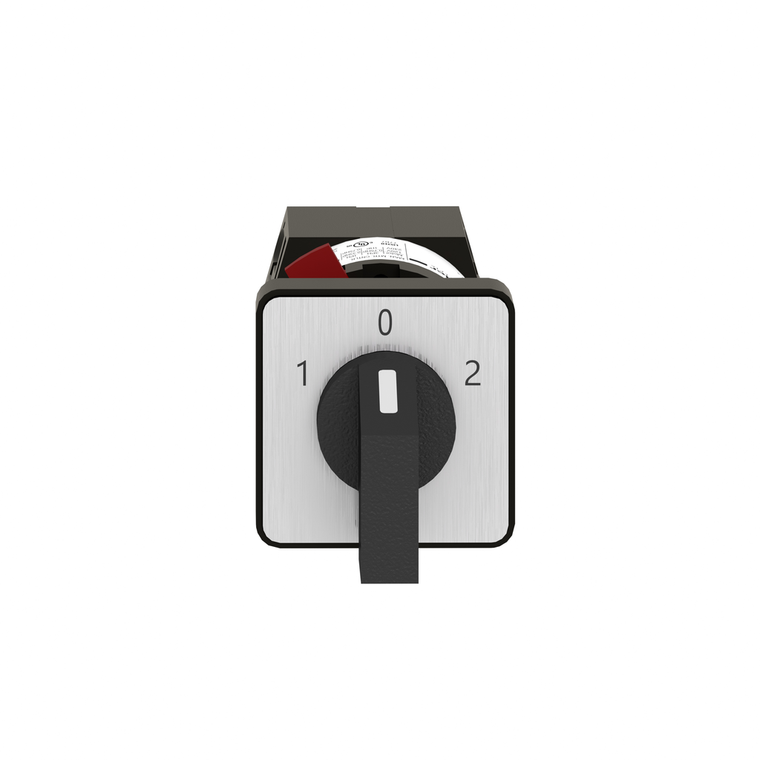

This Harmony K10 complete cam switch/selector switch has 3 poles (3P). It also has a rating of 10A, a screw clamp mounting mode and a metallic color with black marking. It has "1 - 0 - 2" marking to indicate the position of the switch. This metal head complete cam switch/selector switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 60 degree between its switching positions. IP65 on its front part allows for installation in harsh (heavy) environment or outdoor.
Additional Information
Mercury Free:
Yes
Product Certifications:
cULus
Poles Description:
3P
Switching Positions:
right: 0° - 60° || left: 0° - 300°
Cam Switch Function:
changeover switch
Electrical Shock Protection Class:
class II IEC 60536
Short-Circuit Protection:
10 A cartridge fuse gG
[Uimp] Rated Impulse Withstand Voltage:
4 kV IEC 60947-1
China Rohs Regulation:
X
Off Position:
with Off position
Component Name:
K10
Switching Angle:
60 °
Product Or Component Type:
complete cam switch
Contact Operation:
slow-break
Standards:
CENELEC EN 50013 || EN/IEC 60947-3 || EN/IEC 60947-5-1
Cad Overall Depth:
100 mm
Return:
without
Ambient Air Temperature For Storage:
-40-70 °C
Range Of Product:
Harmony K
Warranty:
18 months
Protective Treatment:
TC
Cam Switch Head Type:
with front plate 30 x 30 mm
Reach Free Of Svhc:
Yes
Rotary Handle Padlocking:
without
Type Of Operator:
Black handle
Fixing Mode:
Ø 16 or 22 mm hole
Cad Overall Height:
30 mm
[Ie] Rated Operational Current Dc:
10 A 24 V resistive || 0.3 A 220 V resistive || 0.7 A 110 V resistive
Rated Power In Hp:
1 hp 220/240 V AC, 3 phase || 0.33 hp 110/120 V AC, 1 phase || 0.75 hp 110/120 V AC, 3 phase || 0.75 hp 220/240 V AC, 1 phase
Ip Degree Of Protection:
contact block: IP20 || operating head: IP65 conforming to IEC 60529
[Ui] Rated Insulation Voltage:
440 V 3)IEC 60947-1
Toxic Heavy Metal Free:
Yes
[Ie] Rated Operational Current Ac:
10 A 400 V AC-1 || 10 A 400 V AC-21A || 3 A 240 V AC-15 || 6 A 120 V AC-15
Rohs Exemption Information:
Yes
Cad Overall Width:
30 mm
Electrical Durability:
100000000 cycles
Electrical Connection:
captive screw clamp terminals 2 x 1.5 mm²
[Ith] Conventional Free Air Thermal Current:
0.416666666666667
Product Mounting:
front mounting
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation:
-20-55 °C
Presentation Of Legend:
with metallic, 1 - 0 - 2 black
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Net Weight:
0.055 kg
Mechanical Durability:
1000000 cycles
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Rated Operational Power In W:
1800 W AC-23A, 220/240 V 3 phase || 370 W AC-23A, 110/120 V 1 phase || 750 W AC-23A, 220/240 V 1 phase
