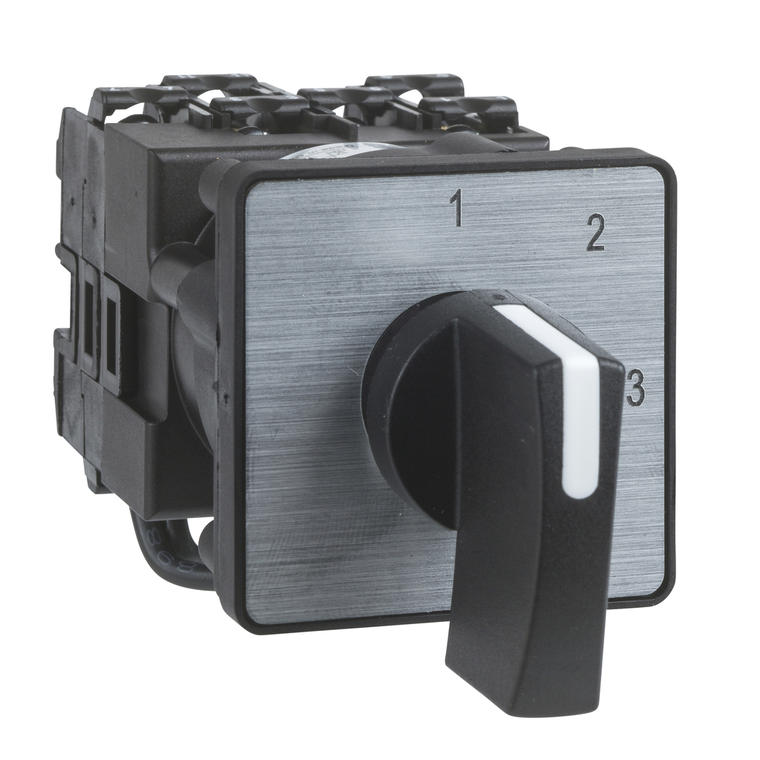

Schneider Electric K1B006TLH Compl. Camswitch Dia 22

Schneider Electric K1B006TLH Compl. Camswitch Dia 22

Schneider Electric
SKU:
K1B006TLH
|
UPC:
3389110978698
Availability:
Contact us to confirm availability and lead times.
$142.50
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
Complete cam switch, Harmony K, changeover switch, 45 x 45mm, 1P, with off position, 45 degree angle, 12A, black marked 2-0-1, screw mounting
Additional Information
Range Of Product:
Harmony K
Cad Overall Width:
45 mm
Warranty:
18 months
[Ui] Rated Insulation Voltage:
690 V 3)IEC 60947-1
Mechanical Durability:
1000000 cycles
Type Of Operator:
Black handle 35 mm
Net Weight:
0.115 kg
[Ithe] Conventional Enclosed Thermal Current:
0.416666666666667
Mercury Free:
Yes
Circularity Profile:
N/A
Short-Circuit Protection:
16 A cartridge fuse gG
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Sustainable Offer Status:
Green Premium product
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Shock Resistance:
30 gn IEC 68-2-27
Ip Degree Of Protection:
IP40 conforming to IEC 529
Cad Overall Depth:
77 mm
Short-Circuit Current:
10000 A
Product Or Component Type:
complete cam switch
Poles Description:
1P
Positive Opening:
with
Electrical Connection:
captive screw clamp terminals flexible 2 x 1.5 mm² || captive screw clamp terminals solid 1 x 2.5 mm²
Vibration Resistance:
5 gn 10-150 Hz)IEC 68-2-6
Toxic Heavy Metal Free:
Yes
Contact Operation:
slow-break
Maximum Operating Rate:
2.5 cyc/mn AC-21 || 2.5 cyc/mn AC-23 || 2.5 cyc/mn AC-3 || 8.333 cyc/mn AC-15
Product Certifications:
CSA 240 V 3 hp 3 phase 2 || UL 240 V 0.33 hp 1 phase 2 || CSA 240 V 1 hp 1 phase || UL 240 V 1 hp 3 phase
China Rohs Regulation:
X
Off Position:
with Off position
Fixing Mode:
multifixing
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Rohs Exemption Information:
Yes
Ambient Air Temperature For Storage:
-40-70 °C
Switching Angle:
45 °
Electrical Durability:
1000000 cycles AC-15 || 1000000 cycles AC-21 || 500000 cycles AC-23 || 500000 cycles AC-3
[Ith] Conventional Free Air Thermal Current:
0
Cad Overall Height:
45 mm
Electrical Shock Protection Class:
class II IEC 536 || class II NF C 20-030
[Ie] Rated Operational Current Ac:
1.8 A 690 V AC-3 3 phase IEC 60947-3 || 2 A 400 V AC-15 IEC 60947-5-1 || 3 A 230 V AC-15 IEC 60947-5-1 || 2.8 A 500 V AC-3 3 phase IEC 60947-3 || 2.8 A 690 V AC-23A 3 phase IEC 60947-3 || 3.3 A 400 V AC-3 3 phase IEC 60947-3 || 3.8 A 500 V AC-23A 3 p
Presentation Of Legend:
with metallic, 2 - 0 - 1 black
Rated Operational Power In W:
10500 W AC-21, 500...660 V 3 phase IEC 60947-3 || 2200 W AC-23A, 690 V 3 phase IEC 60947-3 || 4800 W AC-21, 230 V 3 phase IEC 60947-3 || 600 W AC-3, 230 V 1 phase IEC 60947-3 || 8300 W AC-21, 400 V 3 phase IEC 60947-3 || 1100 W AC-3, 230 V 3 phase IE
Return:
spring return from 45° to 0° || spring return from 315° to 0°
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Reach Free Of Svhc:
Yes
Cam Switch Head Type:
with front plate 45 x 45 mm
Component Name:
K1
Cam Switch Function:
reversing switch
Standards:
EN 60947-3 power circuit || EN 60947-5-1 control circuit || CENELEC EN 50013
Product Mounting:
front mounting
Rotary Handle Padlocking:
without
[Uimp] Rated Impulse Withstand Voltage:
4 kV in isolating function || 6 kV IEC 60947-1
Switching Positions:
right: 0° - 45° || left: 0° - 315°
Protective Treatment:
TC
Ambient Air Temperature For Operation:
-25-55 °C
Environmental Disclosure:
ENVPEP071103EN_V1
