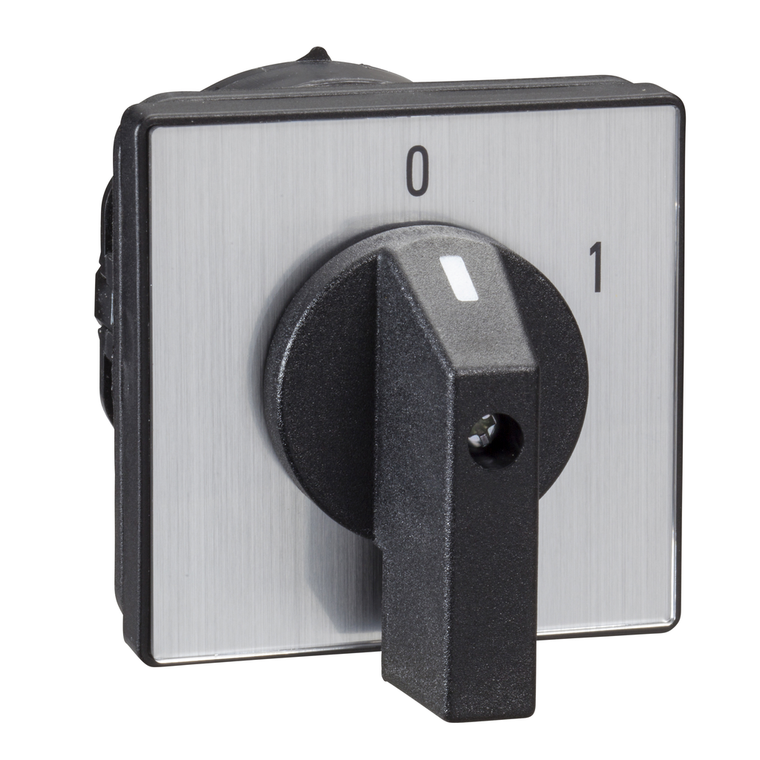

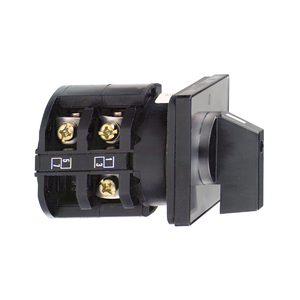

Schneider Electric K30B001UP Cam Changeover Switch 1 Pole 60° 32 A S

(No reviews yet) Write a Review

Write a Review

Schneider Electric K30B001UP Cam Changeover Switch 1 Pole 60° 32 A S

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

K30B001UP

UPC:

3389110083316

MPN:

Condition:

New

Short-Circuit Current:

5000 A

Standards:

IEC 60947-3

Contact Operation:

slow-break

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Ambient Air Temperature For Storage:

-40-70 °C

Cam Switch Function:

changeover switch

Off Position:

with Off position

Positive Opening:

with

Rotary Handle Padlocking:

without

Protective Treatment:

TC

Switching Positions:

left: 0° - 300° || right: 0° - 60°

Net Weight:

0.17 kg

[Uimp] Rated Impulse Withstand Voltage:

6 kV EN 947-1 || 6 kV IEC 947-1

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Product Certifications:

cULus 120 V 2 hp 1 phase || cULus 240 V 5 hp 1 phase || cULus 240 V 5 hp 3 phase || cULus 480 V 20 hp 3 phase

Tightening Torque:

1.2 N.m

Mercury Free:

Yes

[Ui] Rated Insulation Voltage:

690 V 3)IEC 60947-1

Presentation Of Legend:

with metallic, 1 - 0 - 2 black

Fixing Mode:

4 holes

Mechanical Durability:

300000 cycles

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Poles Description:

1P

Cad Overall Height:

64 mm

Ambient Air Temperature For Operation:

-25-55 °C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Mounting Location:

front

Reach Free Of Svhc:

Yes

Overvoltage Category:

class II IEC 60536 || class II NF C 20-030

Ip Degree Of Protection:

IP40 conforming to IEC 60529

China Rohs Regulation:

X

Rohs Exemption Information:

Yes

Warranty:

18 months

Electrical Connection:

captive screw clamp terminals flexible 2 x 4 mm² || captive screw clamp terminals solid 2 x 6 mm²

[Ith] Conventional Free Air Thermal Current:

32 A

Toxic Heavy Metal Free:

Yes

Component Name:

K30

Cad Overall Depth:

81 mm

Switching Capacity In Ma:

11000 mA DC 120 V 2 inductive 50 ms) || 11000 mA DC 180 V 3 inductive 50 ms) || 11000 mA DC 60 V 1 inductive 50 ms) || 1200 mA DC 220 V 1 resistive 1 ms) || 1200 mA DC 440 V 2 resistive 1 ms) || 1200 mA DC 660 V 3 resistive 1 ms) || 16000 mA DC 140 V

Return:

without

Switching Angle:

60 °

Cam Switch Head Type:

with front plate 64 x 64 mm

Type Of Operator:

Black handle

Short-Circuit Protection:

50 A cartridge fuse gG

Cad Overall Width:

64 mm

Product Or Component Type:

complete cam switch

Range Of Product:

Harmony K
