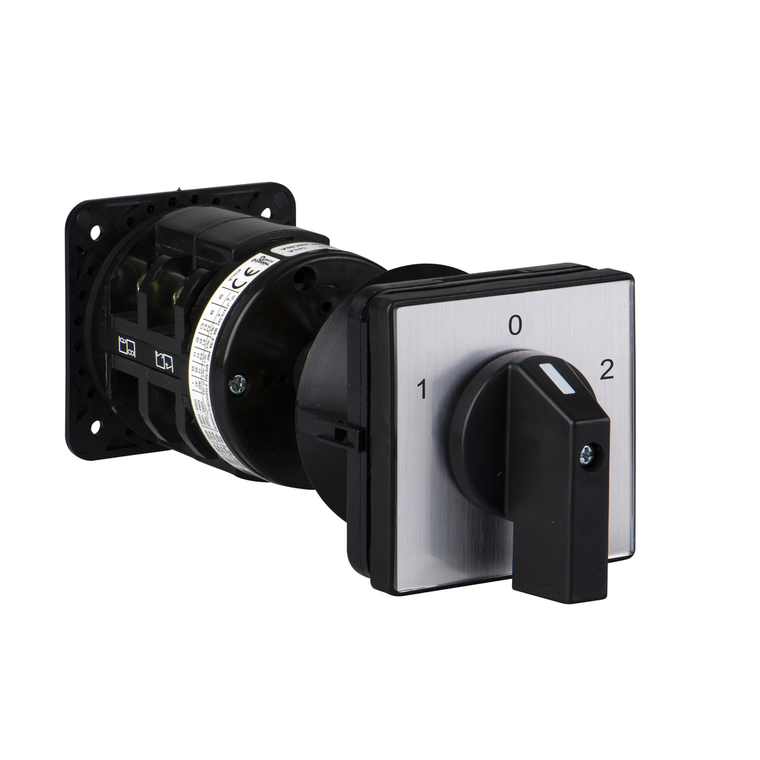

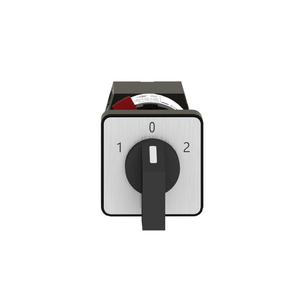

Schneider Electric K50E003WP Cam Changeover Switch 3Pole 60° 50 A Sc

Schneider Electric K50E003WP Cam Changeover Switch 3Pole 60° 50 A Sc

Schneider Electric
SKU:
K50E003WP
|
UPC:
3.38911E+12
$408.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This metal head cam switch is designed to meet most industrial and process control application thanks to a compact size and has several selection functions It has a 60 or 300 degree between its switching positions It works at a rated conventional free air thermal current of 50 A
Additional Information
Rotary Handle Padlocking:
without
Mechanical Durability:
300000 cycles
Cad Overall Width:
64 mm
Presentation Of Legend:
with metallic, 1 - 0 - 2 black
Warranty:
18 months
Return:
without
Product Or Component Type:
complete cam switch
Mercury Free:
Yes
Fixing Mode:
4 holes
Contact Operation:
slow-break
Toxic Heavy Metal Free:
Yes
Cam Switch Function:
reversing switch
Positive Opening:
with
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Switching Positions:
right: 0° - 60° || left: 0° - 300°
Standards:
IEC 60947-3
Product Certifications:
cULus 120 V 3 hp 1 phase || cULus 480 V 25 hp 3 phase || cULus 240 V 7.5 hp 1 phase || cULus 240 V 7.5 hp 3 phase
Component Name:
K50
[Uimp] Rated Impulse Withstand Voltage:
6 kV EN 947-1 || 6 kV IEC 947-1
Reach Free Of Svhc:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product Mounting:
front mounting
China Rohs Regulation:
X
Cad Overall Depth:
120 mm
Short-Circuit Current:
5000 A
Ambient Air Temperature For Operation:
-25-55 °C
Net Weight:
0.485 kg
Range Of Product:
Harmony K
Rohs Exemption Information:
Yes
Tightening Torque:
2 N.m
Protective Treatment:
TC
Electrical Connection:
captive screw clamp terminals flexible 2 x 6 mm² || captive screw clamp terminals solid 2 x 10 mm²
Ip Degree Of Protection:
IP40 conforming to IEC 60529
Switching Capacity In Ma:
15000 mA DC 120 V 2 inductive 50 ms) || 15000 mA DC 180 V 3 inductive 50 ms) || 15000 mA DC 60 V 1 inductive 50 ms) || 20000 mA DC 140 V 3 inductive 50 ms) || 20000 mA DC 48 V 1 inductive 50 ms) || 20000 mA DC 95 V 2 inductive 50 ms) || 30000 mA DC 3
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Short-Circuit Protection:
63 A cartridge fuse gG
Type Of Operator:
Black handle
Ambient Air Temperature For Storage:
-40-70 °C
Poles Description:
3P
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Electrical Shock Protection Class:
class II IEC 60536 || class II NF C 20-030
Off Position:
with Off position
[Ith] Conventional Free Air Thermal Current:
50 A
[Ui] Rated Insulation Voltage:
690 V 3)IEC 60947-1
Cam Switch Head Type:
with front plate 64 x 64 mm
Cad Overall Height:
64 mm
Switching Angle:
60 °
