IP65 conforming to IEC 529 || IP65 conforming to NF C 20-010
Cad Overall Depth:
69 mm
Presentation Of Legend:
with mat black
Rotary Handle Padlocking:
without
Warranty:
18 months
Cad Overall Width:
29 mm
Product Compatibility:
front mounting bodies 12 and 20 A Ø 22 mm hole
Cam Switch Head Type:
with bezel Ø 29 mm, plastic with metallic finish
Component Name:
KAA
Range Of Product:
Harmony Series K
Net Weight:
0.057 kg

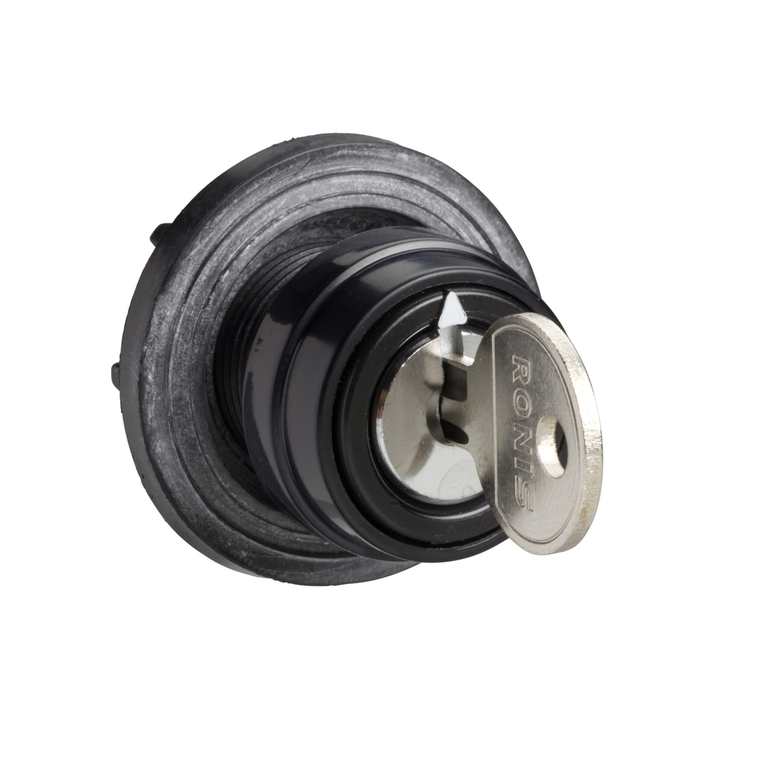

Type Of Operator:
key 601A
Protective Treatment:
TC
Ambient Air Temperature For Storage:
-40-70 °C
Compatibility Code:
KAA
Vibration Resistance:
5 gn 10-150 Hz)IEC 68-2-6
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Mercury Free:
Yes
Cad Overall Height:
29 mm
Switching Angle:
45 °
Product Or Component Type:
cam switch operating head
Reach Regulation:
Free of Substances of Very High Concern above the threshold

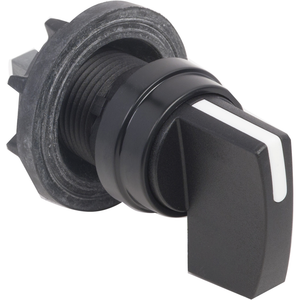

This product is part of the Harmony K range, an offer of 16-22mm rotary cam switches." "This cam switch operator head has black handle and 29mm plastic bezel with metallic finish." "It offers...
