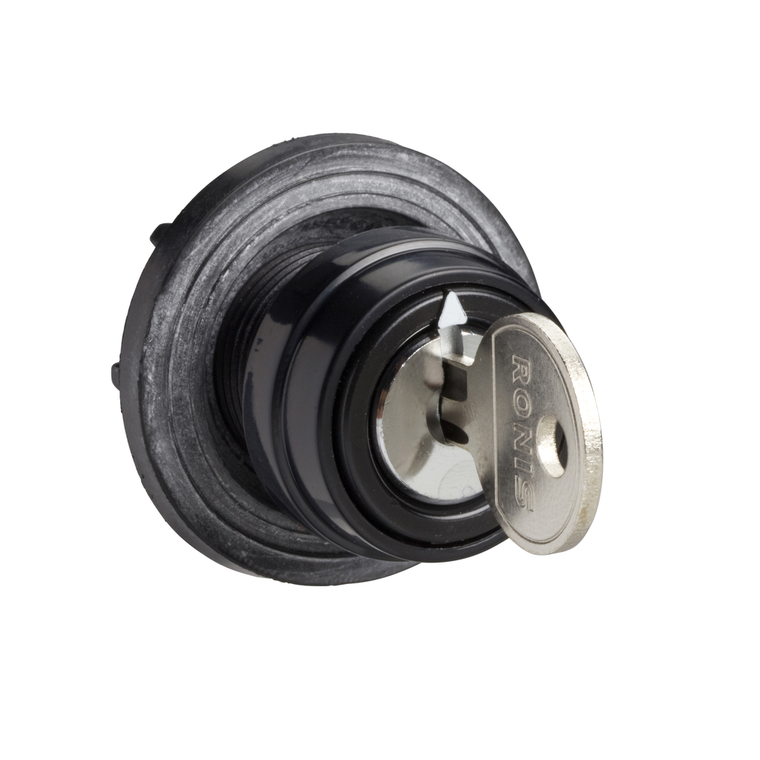

Schneider Electric KAC1S Operator

(No reviews yet) Write a Review

Write a Review

Schneider Electric KAC1S Operator

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

KAC1S

UPC:

3389110483239

MPN:

Condition:

New

Rotary Handle Padlocking:

without

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Switching Angle:

45 ° || 90 °

Reach Free Of Svhc:

Yes

Cam Switch Head Type:

with front plate 45 x 45 mm

Ip Degree Of Protection:

IP65 conforming to IEC 529 || IP65 conforming to NF C 20-010

Product Or Component Type:

cam switch operating head

Net Weight:

0.063 kg

Toxic Heavy Metal Free:

Yes

Product Compatibility:

front mounting bodies 12 and 20 A Ø 22 mm hole

Protective Treatment:

TC

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Component Name:

KAC

Ambient Air Temperature For Operation:

-25-55 °C

Type Of Operator:

key 601A

Range Of Product:

Harmony Series K

Vibration Resistance:

5 gn 10-150 Hz)IEC 68-2-6

Rohs Exemption Information:

Yes

Ambient Air Temperature For Storage:

-40-70 °C

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Shock Resistance:

30 gn IEC 68-2-27

Compatibility Code:

KAC

Mercury Free:

Yes

Warranty:

18 months

China Rohs Regulation:

X

Mechanical Durability:

1000000 cycles

Cad Overall Depth:

69 mm

Cad Overall Width:

45 mm

Cad Overall Height:

45 mm

Presentation Of Legend:

with mat black
