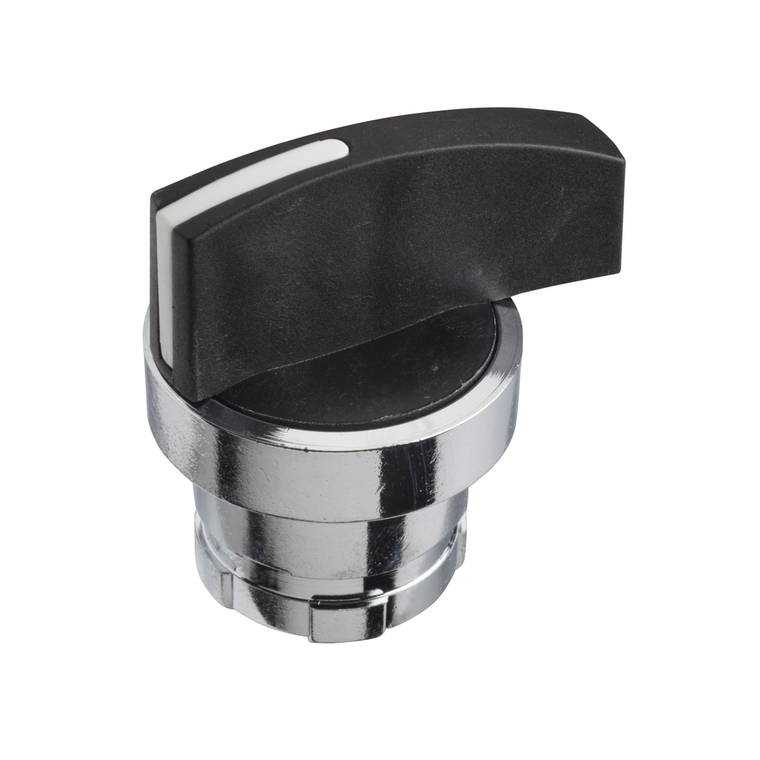

Schneider Electric KAXZ1C12 Selector Switch Head
Schneider Electric
$26.10
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric KAXZ1C12 Selector Switch Head
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony KAXZ1C12 is an operating head with bezel diameter 28.5mm, metal, black long handle. It is part of the range Harmony K diameter 16-22mm rotary cam switches.
- Cad Overall Width:
- 29 mm
- Mercury Free:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ip Degree Of Protection:
- IP65 conforming to IEC 529 || IP65 conforming to NF C 20-010
- China Rohs Regulation:
- X
- Type Of Operator:
- Black long handle
- Reach Free Of Svhc:
- Yes
- Mechanical Durability:
- 1000000 cycles
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Net Weight:
- 0.04 kg
- Range Of Product:
- Harmony Series K
- Compatibility Code:
- KAX
- Rohs Exemption Information:
- Yes
- Presentation Of Legend:
- with mat black
- Component Name:
- KAX
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Toxic Heavy Metal Free:
- Yes
- Product Compatibility:
- front mounting bodies 12 and 20 A Ã 22 mm hole
- Shock Resistance:
- 30 gn IEC 68-2-27
- Rotary Handle Padlocking:
- without
- Ambient Air Temperature For Operation:
- -25-55 °C
- Warranty:
- 18 months
- Cad Overall Depth:
- 25 mm
- Vibration Resistance:
- 5 gn 10-150 Hz)IEC 68-2-6
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Cam Switch Head Type:
- with bezel à 28.5 mm, metal
- Protective Treatment:
- TC
- Cad Overall Height:
- 34 mm
- Product Or Component Type:
- cam switch operating head
- Datasheet:
- View
