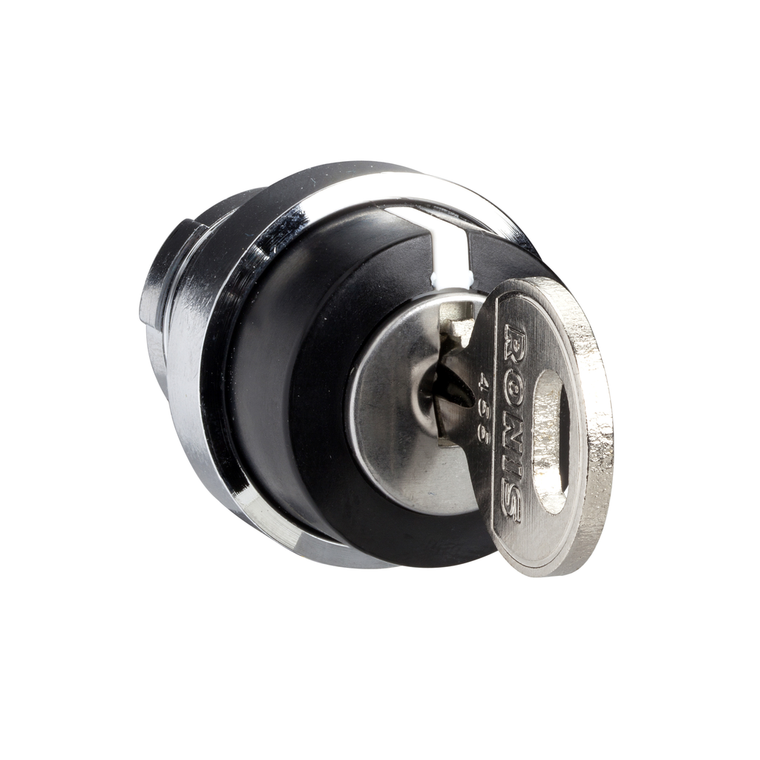

Schneider Electric KAXZ1S131 Selector Switch Head

(No reviews yet) Write a Review

Write a Review

Schneider Electric KAXZ1S131 Selector Switch Head

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

KAXZ1S131

UPC:

3389110980790

MPN:

Condition:

New

Net Weight:

0.065 kg

Reach Free Of Svhc:

Yes

Cad Overall Width:

29 mm

Range Of Product:

Harmony Series K

Shock Resistance:

30 gn IEC 68-2-27

Component Name:

KAX

Protective Treatment:

TC

Warranty:

18 months

China Rohs Regulation:

X

Compatibility Code:

KAX

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Rotary Handle Padlocking:

without

Mercury Free:

Yes

Mechanical Durability:

1000000 cycles

Ambient Air Temperature For Operation:

-25-55 °C

Ip Degree Of Protection:

IP65 conforming to IEC 529 || IP65 conforming to NF C 20-010

Cad Overall Height:

29 mm

Type Of Operator:

key key 455

Rohs Exemption Information:

Yes

Presentation Of Legend:

with mat black

Product Or Component Type:

cam switch operating head

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Vibration Resistance:

5 gn 10-150 Hz)IEC 68-2-6

Toxic Heavy Metal Free:

Yes

Product Compatibility:

front mounting bodies 12 and 20 A Ø 22 mm hole

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Cam Switch Head Type:

with bezel Ø 28.5 mm, metal

Cad Overall Depth:

21 mm

Ambient Air Temperature For Storage:

-40-70 °C

Switching Angle:

30 °

Datasheet:

View
