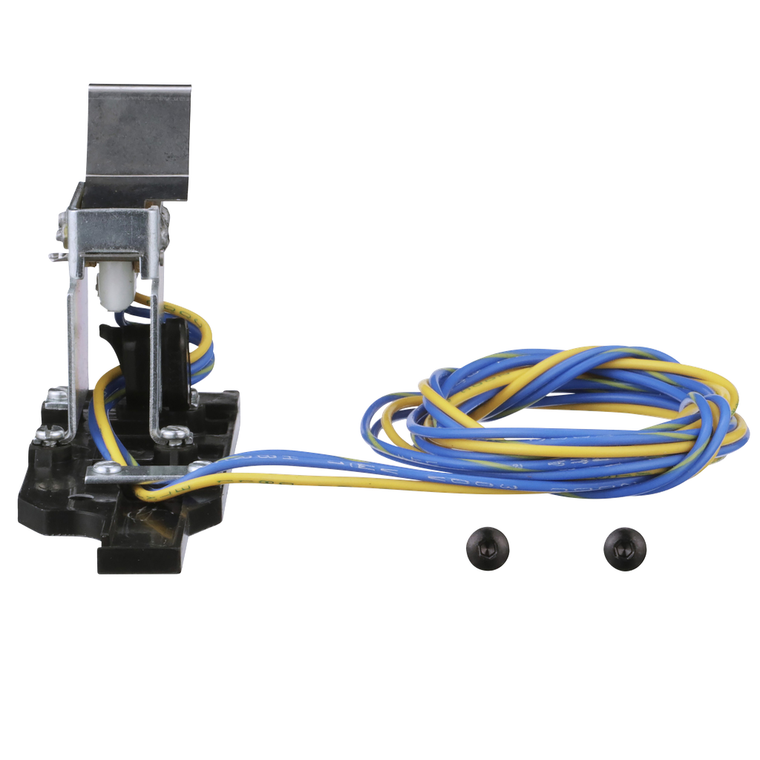

Schneider Electric LA11212 Circuit Breaker Auxiliary Switch 1A/1B
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Circuit breaker accessory, LA/LH/Q4, auxiliary contact, 125 to 250VAC, 30VDC, 1A/1B
- Product Or Component Type:
- auxiliary contact
- Pvc Free:
- Yes
- Circularity Profile:
- N/A
- Eu Rohs Directive:
- Compliant with Exemptions
- Rated Voltage:
- 125-250 V AC || 30-30 V DC
- Rohs Exemption Information:
- Yes
- Tightening Torque:
- 13-13 N.m 42-304 mm² (AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² (AWG 1...250 kcmil) || 42-42 N.m
- Sustainable Offer Status:
- Green Premium product
- Breaking Capacity Code:
- LA || Q4 || LH
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Marking:
- A || B
- Product Certifications:
- CSA || UL Listed
- Warranty:
- 18 months
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Contacts Type And Composition:
- 1 NO + 1 NC
- Mercury Free:
- Yes
- Halogen Content Performance:
- Halogen free plastic parts product
- Environmental Disclosure:
- ENVPEP1410004EN
- Catalog:
- View
- Datasheet:
- View
