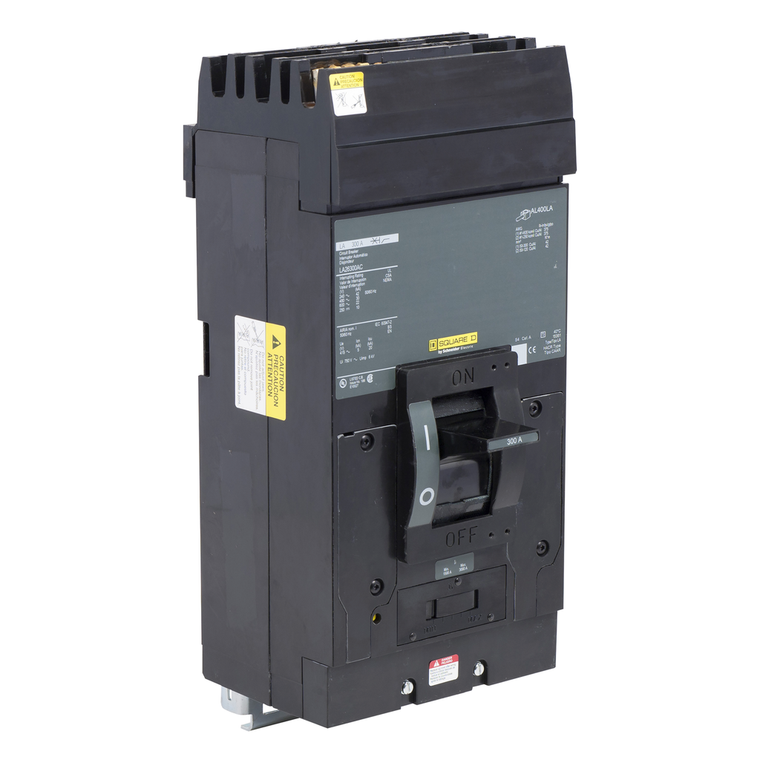

Schneider Electric LA26300BC Molded Case Circuit Breaker 600V 300A

(No reviews yet) Write a Review

Write a Review

Schneider Electric LA26300BC Molded Case Circuit Breaker 600V 300A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LA26300BC

UPC:

785901358428

MPN:

Condition:

New

Environmental Disclosure:

ENVPEP1410004EN

Breaking Capacity Code:

A

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Rohs Exemption Information:

Yes

Tightening Torque:

13-13 N.m 42-304 mm² (AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)

Magnetic Tripping Current:

3000-3000 A

Warranty:

18 months

Circularity Profile:

N/A

Wiring Configuration:

4-wire

Electrical Connection:

lugs, load || I-Line connection, line

Circuit Breaker Application:

HACR rated

Magnetic Hold Current:

1500 A

Line Rated Current:

300 A

Trip Unit Technology:

thermal-magnetic

Mercury Free:

Yes

Depth:

5.84 in

Product Or Component Type:

circuit breaker

Mounting Mode:

I-Line

Eu Rohs Directive:

Compliant with Exemptions

Halogen Content Performance:

Halogen free plastic parts product

Terminal Identifier:

AL400LA

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Sustainable Offer Status:

Green Premium product

Width:

6 in

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Phase Connection:

BC

Pvc Free:

Yes

Product Certifications:

UL Listed || CSA

Poles Description:

2P

Height:

11 in
