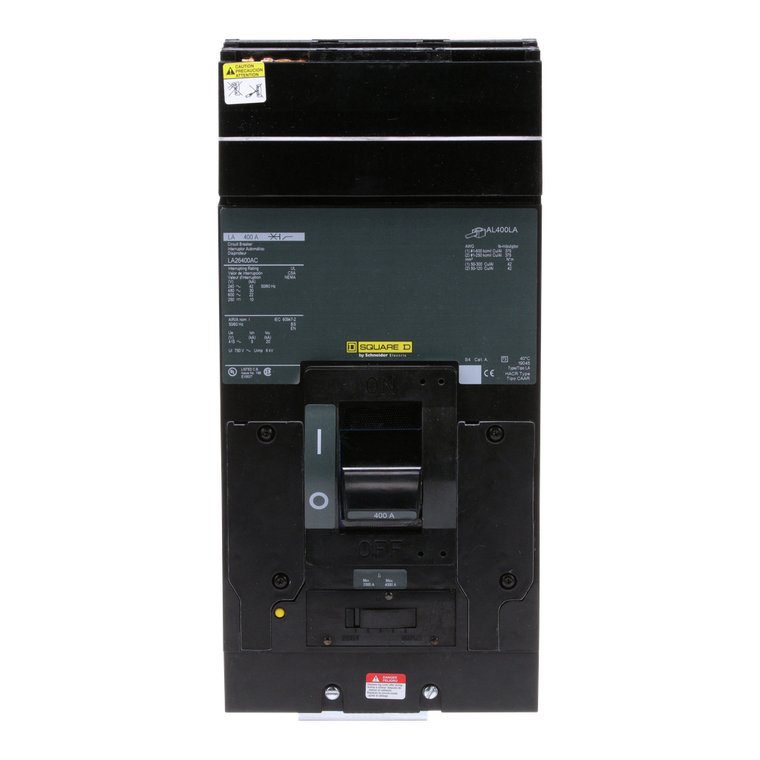

Schneider Electric LA26400AC Molded Case Circuit Breaker 600V 400A

Schneider Electric LA26400AC Molded Case Circuit Breaker 600V 400A

Schneider Electric
SKU:
LA26400AC
|
UPC:
785901009795
$4,053.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Square D FA/LA Molded Case Circuit Breakers is designed to protect electrical systems from damage caused by overloads. For distribution systems supplied by transformers and distribution systems supplied by engine generator sets.
Additional Information
Magnetic Hold Current:
2000 A
Poles Description:
2P
Pvc Free:
Yes
Rohs Exemption Information:
Yes
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Breaking Capacity Code:
A
Circuit Breaker Application:
HACR rated
Sustainable Offer Status:
Green Premium product
Warranty:
18 months
Terminal Identifier:
AL400LA
Environmental Disclosure:
ENVPEP1410004EN
Wiring Configuration:
2-wire
Circularity Profile:
N/A
Depth:
5.84 in
Mounting Mode:
I-Line
Product Certifications:
UL Listed || CSA
Width:
6 in
Magnetic Tripping Current:
4000-4000 A
Mercury Free:
Yes
Electrical Connection:
lugs, load || I-Line connection, line
Line Rated Current:
400 A
Phase Connection:
AC
Eu Rohs Directive:
Compliant with Exemptions
Product Or Component Type:
circuit breaker
Height:
11 in
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Trip Unit Technology:
thermal-magnetic
Halogen Content Performance:
Halogen free plastic parts product
Datasheet:
View
