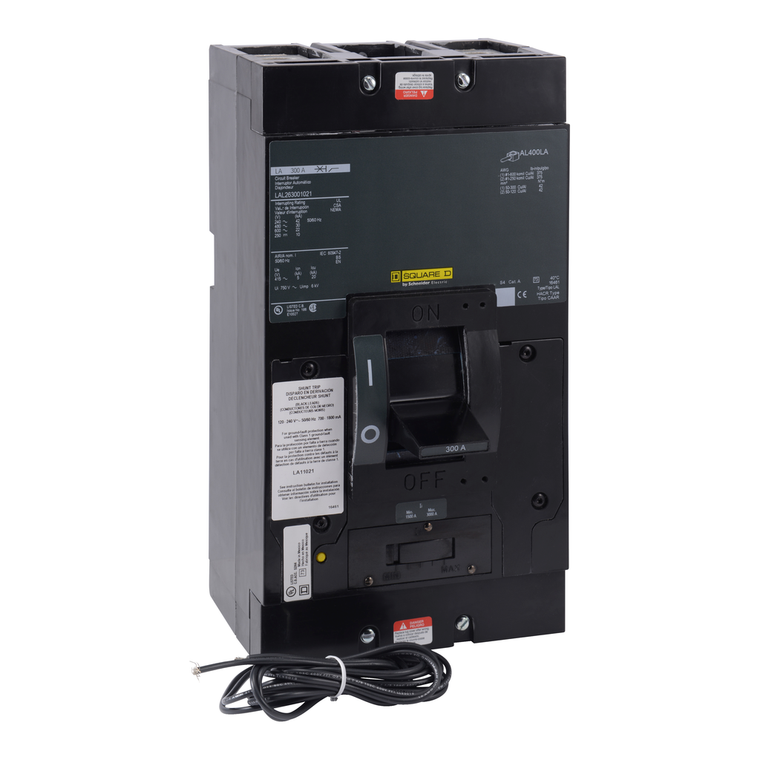

Schneider Electric LA363001021 Molded Case Circuit Breaker 600V 300A
Schneider Electric
$8,775.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric LA363001021 Molded Case Circuit Breaker 600V 300A
Circuit breaker, LA, 300A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, I-Line, thermal magnetic, shunt trip
- Electrical Connection:
- lugs, load || I-Line connection, line
- Product Certifications:
- IEC || UL Listed || CSA
- Product Or Component Type:
- circuit breaker
- Magnetic Hold Current:
- 1500 A
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Sustainable Offer Status:
- Green Premium product
- Depth:
- 5.84 in
- Circuit Breaker Application:
- HACR rated
- Rohs Exemption Information:
- Yes
- Breaking Capacity Code:
- A
- Halogen Content Performance:
- Halogen free plastic parts product
- Line Rated Current:
- 300 A
- Mounting Mode:
- I-Line
- Mercury Free:
- Yes
- Terminal Identifier:
- AL400LA
- Height:
- 11 in
- Magnetic Tripping Current:
- 3000-3000 A
- Warranty:
- 18 months
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Environmental Disclosure:
- ENVPEP1410004EN
- Tightening Torque:
- 13-13 N.m 42-304 mm² (AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)
- Poles Description:
- 3P
- Circularity Profile:
- N/A
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Width:
- 6 in
- Eu Rohs Directive:
- Compliant with Exemptions
- Trip Unit Technology:
- thermal-magnetic
- Pvc Free:
- Yes
- Catalog:
- View
- Datasheet:
- View
