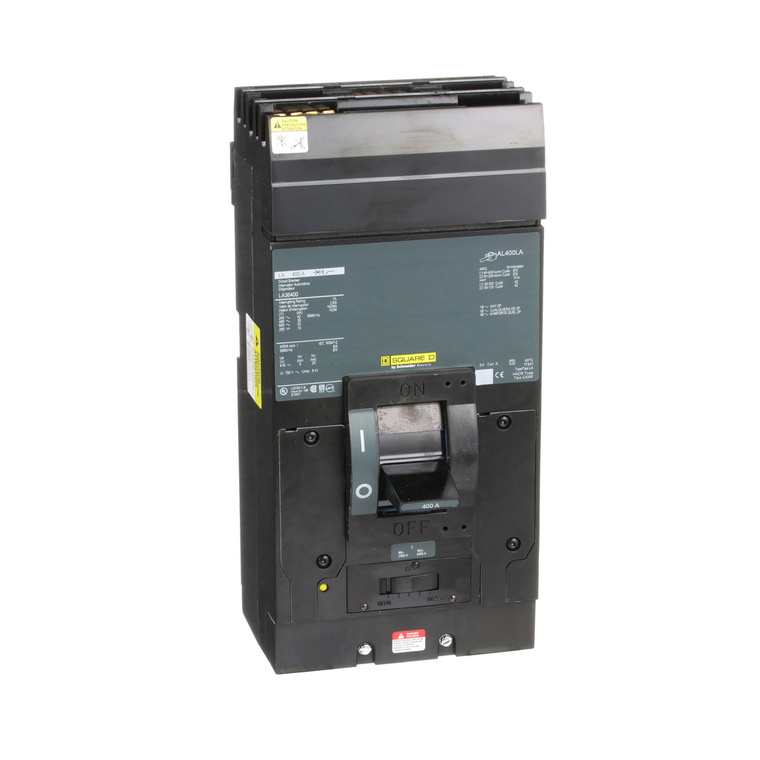

Schneider Electric LA36400 Molded Case Circuit Breaker 600V 400A

Schneider Electric LA36400 Molded Case Circuit Breaker 600V 400A

Schneider Electric
SKU:
LA36400
|
UPC:
785901426325
Availability:
Contact us to confirm availability and lead times.
$4,944.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
Square D-brand I-Line circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed. I-Line circuit breaker panelboards are available as 400–1200A main lugs only and 100–1200A main circuit breakers. I-Line circuit breakers, with their exclusive bus connection design, provide superior reliability and performance advantages. A wide variety of accessories are available for field or factory installation of I-Line panelboards. This I-Line, 3P, circuit breaker has a 300A rated current. This breaker has a breaking capacity of 22 kA@600 VAC operation voltage. This breaker has a thermal-magnetic trip technology. The dimensions are 11 in (H), 6 in (W), 5.84 in (D).
Additional Information
Tightening Torque:
13-13 N.m 42-304 mm² (AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)
Mounting Mode:
I-Line
Halogen Content Performance:
Halogen free plastic parts product
Wiring Configuration:
3-wire
Rohs Exemption Information:
Yes
Magnetic Tripping Current:
4000-4000 A
Circuit Breaker Application:
HACR rated
Magnetic Hold Current:
2000 A
Depth:
5.84 in
Product Certifications:
UL Listed || CSA
Pvc Free:
Yes
Phase Connection:
ABC
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Warranty:
18 months
Line Rated Current:
400 A
Breaking Capacity Code:
A
Height:
11 in
Width:
6 in
Sustainable Offer Status:
Green Premium product
Trip Unit Technology:
thermal-magnetic
Circularity Profile:
N/A
Terminal Identifier:
AL400LA
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Electrical Connection:
lugs, load || I-Line connection, line
Environmental Disclosure:
ENVPEP1410004EN
Eu Rohs Directive:
Compliant with Exemptions
Mercury Free:
Yes
Product Or Component Type:
circuit breaker
Poles Description:
3P
Datasheet:
View
