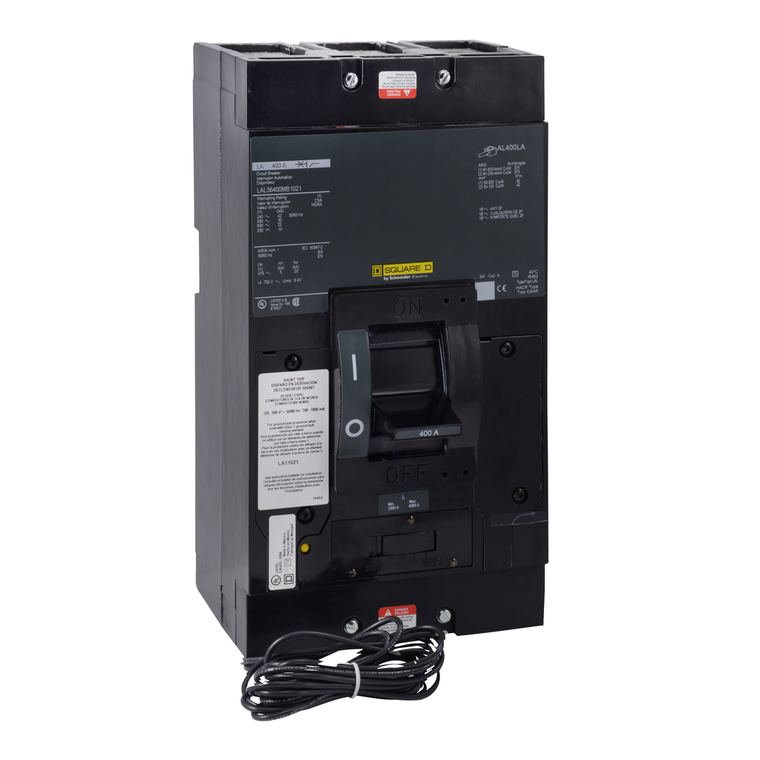

Schneider Electric LA364001021 Molded Case Circuit Breaker 600V 400A

(No reviews yet) Write a Review

Write a Review

Schneider Electric LA364001021 Molded Case Circuit Breaker 600V 400A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LA364001021

UPC:

785901341987

MPN:

Condition:

New

Poles Description:

3P

Mounting Mode:

I-Line

Circuit Breaker Application:

HACR rated

Breaking Capacity Code:

A

Height:

11 in

Trip Unit Technology:

thermal-magnetic

Line Rated Current:

400 A

Wiring Configuration:

3-wire

Phase Connection:

ABC

Tightening Torque:

13-13 N.m 42-304 mm² (AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)

Product Certifications:

UL Listed || CSA || IEC

Depth:

5.84 in

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Pvc Free:

Yes

Halogen Content Performance:

Halogen free plastic parts product

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Magnetic Tripping Current:

4000-4000 A

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Rohs Exemption Information:

Yes

Eu Rohs Directive:

Compliant with Exemptions

Circularity Profile:

N/A

Sustainable Offer Status:

Green Premium product

Electrical Connection:

lugs, load || I-Line connection, line

Magnetic Hold Current:

2000 A

Product Or Component Type:

circuit breaker

Warranty:

18 months

Terminal Identifier:

AL400LA

Mercury Free:

Yes

Environmental Disclosure:

ENVPEP1410004EN

Width:

6 in

Catalog:

View

Datasheet:

View
