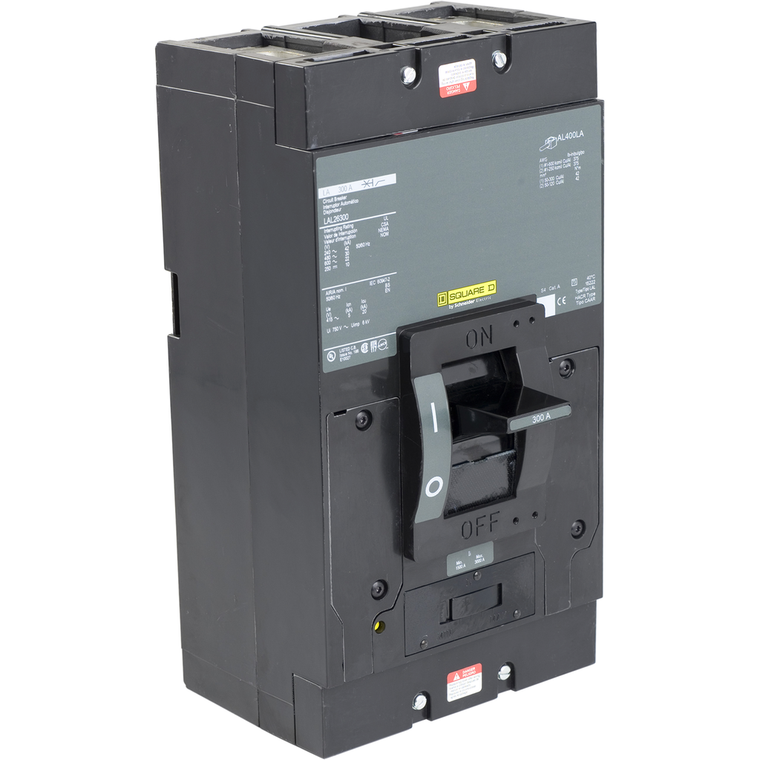

Schneider Electric LAL26250 Molded Case Circuit Breaker 600V 250A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LA molded case circuit breaker is a 2 pole unit mount breaker, 250A and 600VAC. The thermal magnetic circuit breaker has an interrupting rating of 22kA for 600VAC and 10kA for 250VDC. LA breakers are UL 489, CSA, IEC certified.
- Circularity Profile:
- N/A
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Mercury Free:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Terminal Identifier:
- AL400LA
- Width:
- 6 in
- Environmental Disclosure:
- ENVPEP1410004EN
- Halogen Content Performance:
- Halogen free plastic parts product
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Depth:
- 5.84 in
- Pvc Free:
- Yes
- Magnetic Hold Current:
- 1250 A
- Electrical Connection:
- lugs, load || lugs, line
- Mounting Mode:
- unit mount
- Rohs Exemption Information:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Product Certifications:
- UL Listed || IEC || CSA
- Circuit Breaker Application:
- HACR rated
- Line Rated Current:
- 250 A
- Product Or Component Type:
- circuit breaker
- Eu Rohs Directive:
- Compliant with Exemptions
- Warranty:
- 18 months
- Poles Description:
- 2P
- Trip Unit Technology:
- thermal-magnetic
- Tightening Torque:
- 13-13 N.m 42-304 mm² (AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)
- Height:
- 11 in
- Magnetic Tripping Current:
- 2500-2500 A
- Catalog:
- View
- Datasheet:
- View
