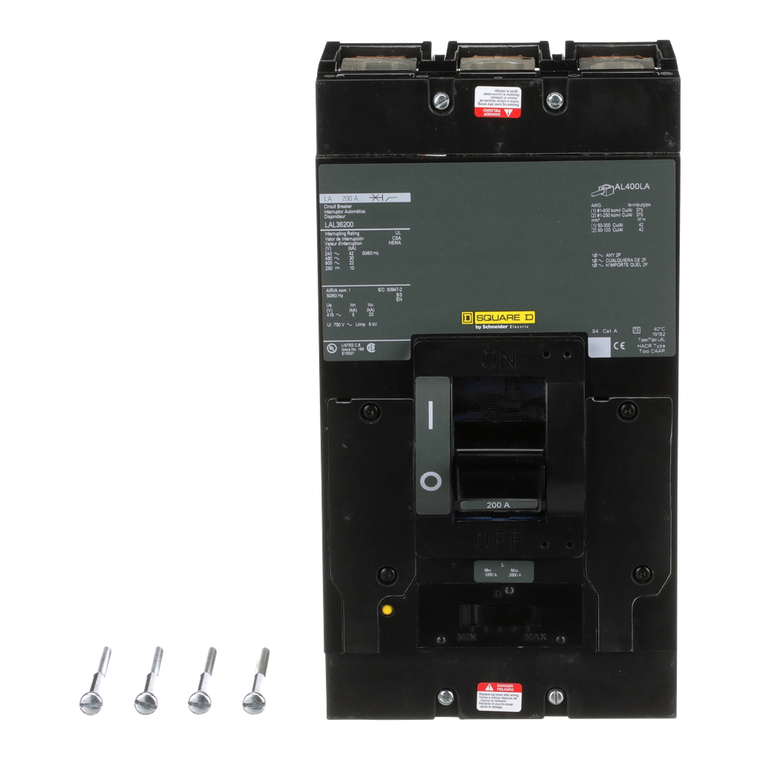

Schneider Electric LAL36200 Molded Case Circuit Breaker 600V 200A
Schneider Electric
$4,619.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric LAL36200 Molded Case Circuit Breaker 600V 200A
Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LA molded case circuit breaker is a 3 pole unit mount breaker, 200A and 600VAC. The thermal magnetic circuit breaker has an interrupting rating of 22kA for 600VAC and 10kA for 250VDC. LA breakers are UL 489, CSA, IEC certified. .
- Warranty:
- 18 months
- Eu Rohs Directive:
- Compliant with Exemptions
- Circularity Profile:
- N/A
- Trip Unit Technology:
- thermal-magnetic
- Mounting Mode:
- unit mount
- Electrical Connection:
- lugs, load || lugs, line
- Poles Description:
- 3P
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Magnetic Hold Current:
- 1000 A
- Magnetic Tripping Current:
- 2000-2000 A
- Environmental Disclosure:
- ENVPEP1410004EN
- Width:
- 6 in
- Line Rated Current:
- 200 A
- Sustainable Offer Status:
- Green Premium product
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Halogen Content Performance:
- Halogen free plastic parts product
- Product Certifications:
- CSA || UL Listed || IEC
- Pvc Free:
- Yes
- Tightening Torque:
- 13-13 N.m 42-304 mm² (AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)
- Depth:
- 5.84 in
- Terminal Identifier:
- AL400LA
- Rohs Exemption Information:
- Yes
- Circuit Breaker Application:
- HACR rated
- Product Or Component Type:
- circuit breaker
- Mercury Free:
- Yes
- Height:
- 11 in
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Catalog:
- View
- Datasheet:
- View
