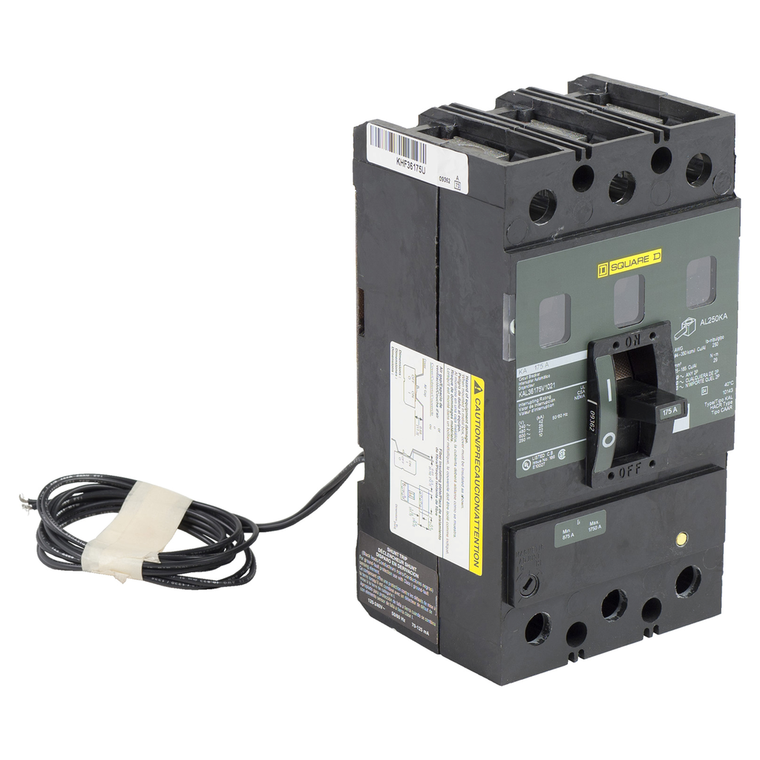

Schneider Electric LAL362251021 Molded Case Circuit Breaker 600V 225A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LA molded case circuit breaker is a 3 pole unit mount breaker, 225A and 600VAC. The thermal magnetic circuit breaker has an interrupting rating of 22kA for 600VAC and 10kA for 250VDC. The circuit breaker 1021 suffix indicates a factory installed shunt trip. LA breakers are UL 489, CSA, IEC certified.
- Circuit Breaker Application:
- HACR rated
- Terminal Identifier:
- AL400LA
- Sustainable Offer Status:
- Green Premium product
- Magnetic Tripping Current:
- 2250-2250 A
- Poles Description:
- 3P
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Product Or Component Type:
- circuit breaker
- Width:
- 6 in
- Environmental Disclosure:
- ENVPEP1410004EN
- Product Certifications:
- UL Listed || IEC || CSA
- Line Rated Current:
- 225 A
- Trip Unit Technology:
- thermal-magnetic
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Tightening Torque:
- 13-13 N.m 42-304 mm² (AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)
- Electrical Connection:
- lugs, load || lugs, line
- Mounting Mode:
- unit mount
- Magnetic Hold Current:
- 1125 A
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Depth:
- 5.84 in
- Eu Rohs Directive:
- Compliant with Exemptions
- Halogen Content Performance:
- Halogen free plastic parts product
- Pvc Free:
- Yes
- Warranty:
- 18 months
- Rohs Exemption Information:
- Yes
- Height:
- 11 in
- Mercury Free:
- Yes
- Circularity Profile:
- N/A
- Catalog:
- View
- Datasheet:
- View
