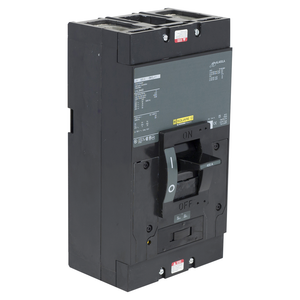

Schneider Electric LAL363001021 Molded Case Circuit Breaker 600V 300A

Schneider Electric LAL363001021 Molded Case Circuit Breaker 600V 300A

Schneider Electric
SKU:
LAL363001021
|
UPC:
785901339472
Availability:
Factory stock
$3,521.36
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

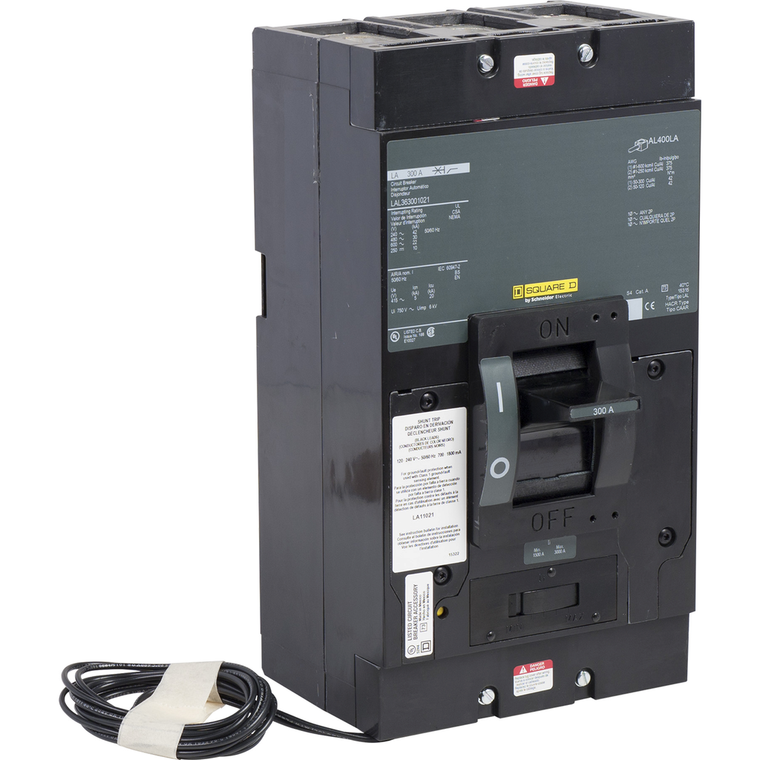

Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LA molded case circuit breaker is a 3 pole unit mount breaker, 300A and 600VAC. The thermal magnetic circuit breaker has an interrupting rating of 22kA for 600VAC and 10kA for 250VDC. The circuit breaker 1021 suffix indicates a factory installed shunt trip. LA breakers are UL 489, CSA, IEC certified.
Additional Information
Magnetic Tripping Current:
3000-3000 A
Circularity Profile:
N/A
Halogen Content Performance:
Halogen free plastic parts product
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Depth:
5.84 in
Eu Rohs Directive:
Compliant with Exemptions
Mercury Free:
Yes
Terminal Identifier:
AL400LA
Trip Unit Technology:
thermal-magnetic
Rohs Exemption Information:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Poles Description:
3P
Line Rated Current:
300 A
Height:
11 in
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Electrical Connection:
lugs, load || lugs, line
Warranty:
18 months
Circuit Breaker Application:
HACR rated
Product Certifications:
CSA || UL Listed || IEC
Pvc Free:
Yes
Sustainable Offer Status:
Green Premium product
Mounting Mode:
unit mount
Magnetic Hold Current:
1500 A
Width:
6 in
Tightening Torque:
13-13 N.m 42-304 mm² (AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)
Product Or Component Type:
circuit breaker
Environmental Disclosure:
ENVPEP1410004EN
Datasheet:
View
