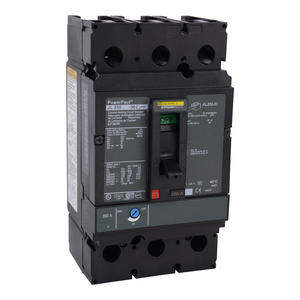

Schneider Electric JGA36250U31XYP Molded Case Circuit Breaker 600V 250A
$4,303.00
Schneider Electric
Schneider Electric LAP36250MB Molded Case Circuit Breaker 600V 250A
Schneider Electric
$4,619.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric LAP36250MB Molded Case Circuit Breaker 600V 250A
Circuit breaker, LA, 250A, 3 pole, 600VAC, 22kA, 250VDC, unit mount, thermal magnetic, short handle
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Magnetic Hold Current:
- 1250 A
- Wiring Configuration:
- 3-wire
- Product Or Component Type:
- circuit breaker
- Product Certifications:
- IEC || UL Listed || CSA
- Mercury Free:
- Yes
- Poles Description:
- 3P
- Depth:
- 5.84 in
- Environmental Disclosure:
- ENVPEP1410004EN
- Eu Rohs Directive:
- Compliant with Exemptions
- Magnetic Tripping Current:
- 2500-2500 A
- Line Rated Current:
- 250 A
- Height:
- 11 in
- Rohs Exemption Information:
- Yes
- Circularity Profile:
- N/A
- Pvc Free:
- Yes
- Trip Unit Technology:
- magnetic
- Width:
- 6 in
- Warranty:
- 18 months
- Operator Profile:
- short lever
- Electrical Connection:
- lugs, load || terminal, line
- Sustainable Offer Status:
- Green Premium product
- Tightening Torque:
- 13-13 N.m 42-304 mm² (AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)
- Circuit Breaker Application:
- HACR rated
- Halogen Content Performance:
- Halogen free plastic parts product
- Mounting Mode:
- unit mount
- Breaking Capacity Code:
- A
- Terminal Identifier:
- AL400LA
- Datasheet:
- View
