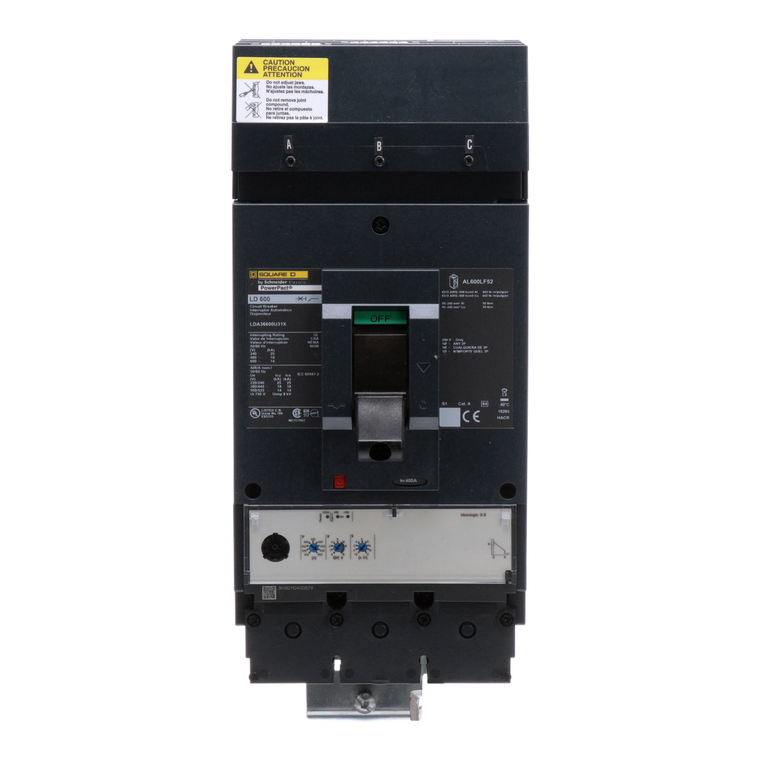

Schneider Electric LDA36600U31X Molded Case Circuit Breaker 600V 600A

Schneider Electric LDA36600U31X Molded Case Circuit Breaker 600V 600A

Schneider Electric
SKU:
LDA36600U31X
|
UPC:
785901986737
Availability:
Contact us to confirm availability and lead times.
$7,404.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 600A, 3 pole, circuit breaker has an interrupting rating of 14kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3 trip unit and an LI function. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Device Application:
distribution
Depth:
110 mm
Suitability For Isolation:
yes IEC 60947-2
Communication Interface:
Modbus || Ethernet
Network Frequency:
50/60 Hz
Sustainable Offer Status:
Green Premium product
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Breaking Capacity Code:
D
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
[Ics] Rated Service Breaking Capacity:
25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Range:
PowerPact
Eu Rohs Directive:
Compliant with Exemptions
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mercury Free:
Yes
Awg Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
Electrical Connection:
I-Line connection, line || lugs, load
Phase Connection:
ABC
Wire Stripping Length:
31 mm
Ambient Air Temperature For Storage:
-50-85 °C
Net Weight:
6.2 kg
Circuit Breaker Application:
HACR rated
Circularity Profile:
ENVEOLI2206029EN
Rohs Exemption Information:
Yes
Poles Description:
3P
Product Certifications:
UL || CSA || NOM
Height:
340 mm
Terminal Identifier:
AL600LF52K3
Mounting Mode:
I-Line bracket)
Width:
140 mm
Color:
Black
Tightening Torque:
50-50 N.m 70-240 mm² (2 x AWG 2/0...500 kcmil)
Long Time Pick-Up Adjustment Range:
0.25...1 x In
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Ambient Air Temperature For Operation:
-2-70 °C
Trip Unit Technology:
electronic, standard, MicroLogic 3.3, LI
Line Rated Current:
600-600 A
Mounting Support:
bracket
Product Name:
PowerPact L
Pollution Degree:
3 IEC 60947-1
Breaking Capacity:
25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz UL 489 || 14 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
Product Or Component Type:
circuit breaker
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Control Type:
toggle
Ip Degree Of Protection:
front cover IP40
Environmental Disclosure:
ENVPEP2206029EN
Pvc Free:
Yes
Trip Unit Name:
MicroLogic 3.3
Continuous Current Rating:
0.8
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Warranty:
18 months
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Mounting Height:
6 in
Device Short Name:
L-Frame
Utilisation Category:
category A
