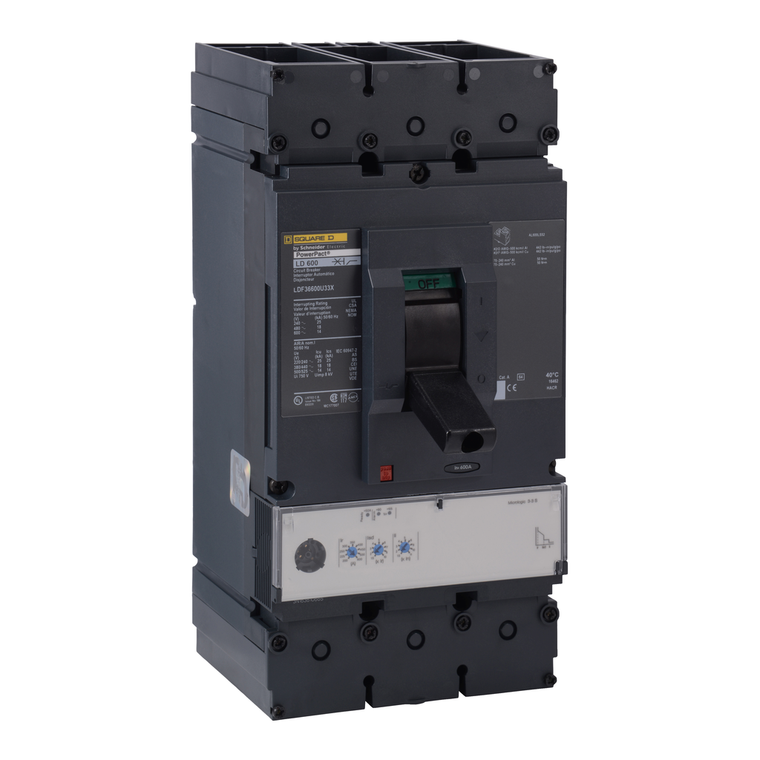

Schneider Electric LDF36600U33X Molded Case Circuit Breaker 600V 600A

Schneider Electric LDF36600U33X Molded Case Circuit Breaker 600V 600A

Schneider Electric
SKU:
LDF36600U33X
|
UPC:
3606486283752
Availability:
Factory stock
$7,165.40
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 600A, 3 pole, circuit breaker has an interrupting rating of 14kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3S trip unit and an LSI function. This unit has a busbar connection. This circuit breaker has a continuous current rating of 80%. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Rohs Exemption Information:
Yes
Line Rated Current:
600-600 A
Mounting Mode:
unit mount busbar)
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Pvc Free:
Yes
Utilisation Category:
category A
Device Application:
distribution
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Tightening Torque:
50-50 N.m 70-240 mm² (2 x AWG 2/0...500 kcmil)
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Color:
Black
Trip Unit Name:
MicroLogic 3.3 S
Ambient Air Temperature For Storage:
-50-85 °C
Ambient Air Temperature For Operation:
-2-70 °C
Environmental Disclosure:
ENVPEP2206029EN
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Sustainable Offer Status:
Green Premium product
Range:
PowerPact
Product Certifications:
UL || CSA || NOM
Mounting Support:
busbar
Poles Description:
3P
Circularity Profile:
ENVEOLI2206029EN
Communication Interface:
Modbus || Ethernet
Control Type:
toggle
[Ics] Rated Service Breaking Capacity:
25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Eu Rohs Directive:
Compliant with Exemptions
Wire Stripping Length:
31 mm || 61 mm
Awg Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
Product Or Component Type:
circuit breaker
Terminal Identifier:
AL600LS52K3
Pollution Degree:
3 IEC 60947-1
Protection Technology:
current limiter
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Network Frequency:
50/60 Hz
Device Short Name:
L-Frame
Width:
140 mm
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Net Weight:
6.2 kg
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Breaking Capacity Code:
D
Warranty:
18 months
Suitability For Isolation:
yes IEC 60947-2
Mercury Free:
Yes
Height:
340 mm
Breaking Capacity:
25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz UL 489 || 14 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
Electrical Connection:
busbar connection, line || busbar connection, load
Trip Unit Technology:
electronic, standard, MicroLogic 3.3 S, LSI
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Ip Degree Of Protection:
front cover IP40
Product Name:
PowerPact L
Depth:
110 mm
Continuous Current Rating:
0.8
Circuit Breaker Application:
HACR rated
