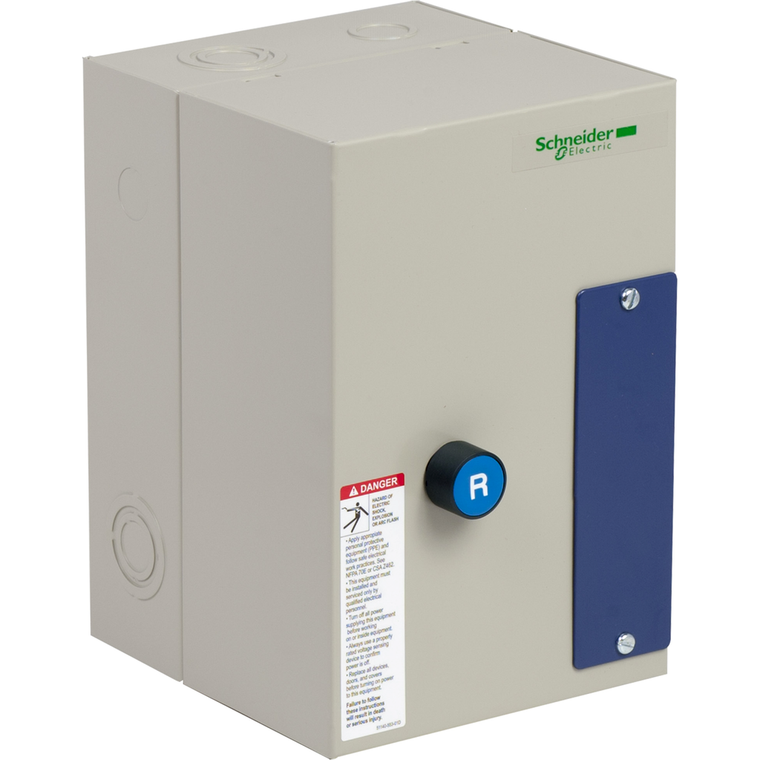

Schneider Electric LE1D123A62OG70 12A 120V 3P Fvnr Type 1
Schneider Electric
$203.94
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
TeSys LE1 enclosed IEC full voltage starters are available in Type 1 and Type 12/3R enclosures. The enclosed TeSys LE1 starters use TeSys D contactors and standard TeSys D accessories and all Insta-Kits control units and control power transformer kits. This enclosed IEC full voltage starter has a LC1D12G7 contactor. This enclosed IEC starter is without an line protection. Contactor has a 3HP at 208VAC, 3HP at 230VAC, 7.5HP at 460VAC and 10HP at 600VAC 3 phase ratings. Contactor has a 1/2HP at 120VAC and 2HP at 240VAC single phase ratings. Contactor has a 120VAC 50/60Hz coil. Contactor has one normally open and one normally closed auxiliary contact. Enclosed starter is not supplied with an overload relay or control transformer. Enclosure is a general purpose sheet steel that is rated NEMA Type 1. This TeSys LE1 IEC encosed starter is UL Listed, CSA certified and IEC certified.
- Nema Degree Of Protection:
- NEMA 1 steel
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- Rohs Exemption Information:
- Yes
- Reach Free Of Svhc:
- Yes
- Toxic Heavy Metal Free:
- Yes
- Environmental Disclosure:
- ENVPEP111273EN
- China Rohs Regulation:
- X
- [Uc] Control Circuit Voltage:
- 600 V AC
- Warranty:
- 18 months
- Motor Starter Type:
- non reversing
- Maximum Horse Power Rating:
- 0.5-0.5 hp 120 V AC, 1 phase || 2-2 hp 240 V AC, 1 phase || 3-3 hp 208 V AC, 3 phase || 3-3 hp 230 V AC, 3 phase || 7.5-7.5 hp 460 V AC, 3 phase || 10-10 hp 575 V AC, 3 phase
- Product Certifications:
- UL || IEC || CSA
- Location Of Connection:
- line
- Auxiliary Contact Composition:
- 1 NO + 1 NC
- Circularity Profile:
- N/A
- Range Of Product:
- Instakits
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Pvc Free:
- Yes
- Mercury Free:
- Yes
- [Ue] Rated Operational Voltage:
- 120 V AC 50/60 Hz
- Eu Rohs Directive:
- Compliant
- [Ie] Rated Operational Current Ac:
- 0
- Sustainable Offer Status:
- Green Premium product
- Product Or Component Type:
- full voltage starter
