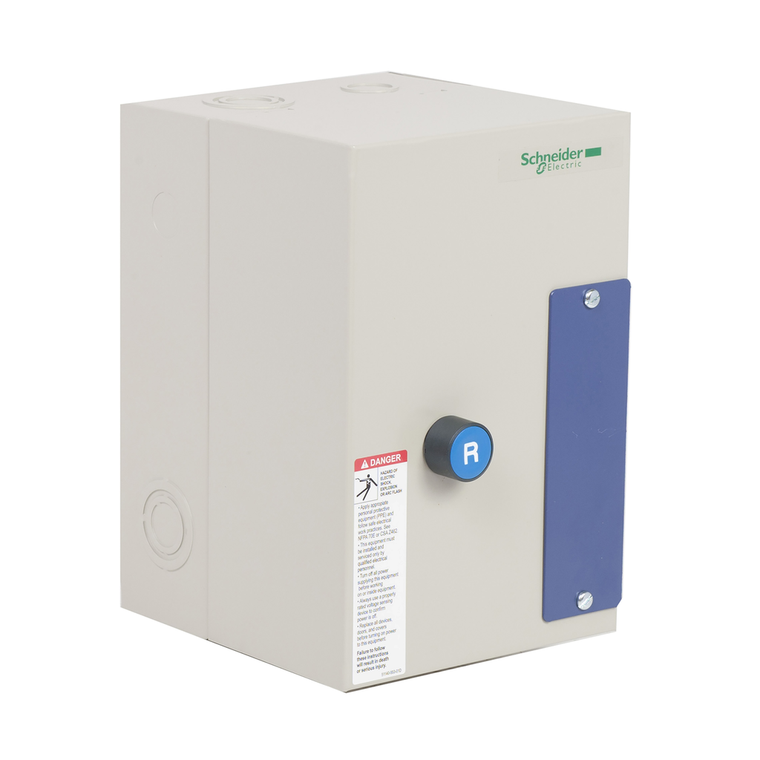

Schneider Electric LE1D323A62OG70 32A 120V 3P Fvnr Type 1

Schneider Electric LE1D323A62OG70 32A 120V 3P Fvnr Type 1

Schneider Electric
SKU:
LE1D323A62OG70
|
UPC:
785901796251
Availability:
Contact us to confirm availability and lead times.
$287.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
Full voltage nonversing starter, TeSys Deca, 3P, Type 1, 32A, 120VAC coil, unfused
Additional Information
[Ie] Rated Operational Current Ac:
32 A
Reach Free Of Svhc:
Yes
Environmental Disclosure:
ENVPEP111273EN
Protection Type:
switch-disconnector fuse
Auxiliary Contact Composition:
1 NO + 1 NC
Eu Rohs Directive:
Compliant
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Toxic Heavy Metal Free:
Yes
Sustainable Offer Status:
Green Premium product
Motor Starter Type:
non reversing
Warranty:
18 months
Pvc Free:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Maximum Horse Power Rating:
2-2 hp 120 V AC, 1 phase || 5-5 hp 240 V AC, 1 phase || 10-10 hp 208 V AC, 3 phase || 10-10 hp 230 V AC, 3 phase || 20-20 hp 460 V AC, 3 phase || 25-25 hp 575 V AC, 3 phase
Circularity Profile:
N/A
Mercury Free:
Yes
Product Certifications:
UL || CSA || IEC
[Uc] Control Circuit Voltage:
600 V AC
China Rohs Regulation:
X
[Ue] Rated Operational Voltage:
120 V AC 50/60 Hz
Product Or Component Type:
full voltage starter
Rohs Exemption Information:
Yes
Range Of Product:
Instakits
Location Of Connection:
line
Nema Degree Of Protection:
NEMA 1 steel
