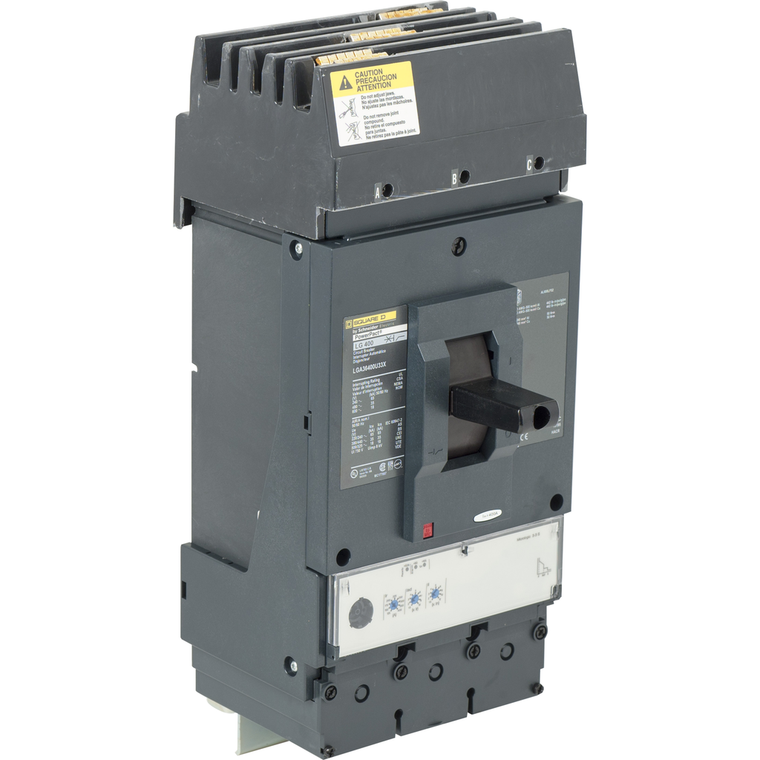

Schneider Electric LGA34400WU33X Molded Case Circuit Breaker 480V 400A
Schneider Electric
$10,485.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 35kA at 480VAC. This circuit breaker provides MicroLogic Standard with a 3.3S trip unit and an LSI function. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. This breaker is a PowerPact Mission Critical; it analyzes fault current to make decisions which maximize selectivity with downstream circuit breakers. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Mounting Height:
- 6 in
- Network Frequency:
- 50/60 Hz
- Tightening Torque:
- 50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
- Eu Rohs Directive:
- Compliant with Exemptions
- Product Or Component Type:
- circuit breaker
- Color:
- Black
- Ip Degree Of Protection:
- front cover IP40
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- Warranty:
- 18 months
- [Ue] Rated Operational Voltage:
- 480/277 V AC 50/60 Hz IEC 60947-3
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Certifications:
- UL || CSA || NOM
- Line Rated Current:
- 400-400 A
- Local Signalling:
- ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
- Pvc Free:
- Yes
- Range:
- PowerPact
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Circuit Breaker Application:
- HACR rated
- Electrical Connection:
- I-Line connection, line || lugs, load
- Utilisation Category:
- category A
- Poles Description:
- 3P
- Sustainable Offer Status:
- Green Premium product
- Continuous Current Rating:
- 0.8
- Environmental Disclosure:
- ENVPEP2206029EN
- Terminal Identifier:
- AL600LS52K3
- Width:
- 140 mm
- Communication Interface:
- Modbus || Ethernet
- Rohs Exemption Information:
- Yes
- Net Weight:
- 6.2 kg
- Circularity Profile:
- ENVEOLI2206029EN
- Control Type:
- toggle
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Protection Technology:
- current limiter
- Device Short Name:
- L-Frame
- Breaking Capacity Code:
- G
- Product Name:
- PowerPact L
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage:
- -50-85 °C
- Depth:
- 110 mm
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Device Application:
- distribution
- Pollution Degree:
- 3 IEC 60947-1
- Awg Gauge:
- 2 x AWG 2/0...500 kcmil aluminium/copper
- Mounting Mode:
- I-Line bracket)
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Trip Unit Name:
- MicroLogic 3.3 S
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Wire Stripping Length:
- 31 mm || 61 mm
- Height:
- 340 mm
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Mercury Free:
- Yes
- Phase Connection:
- ABC
- Mounting Support:
- bracket
- Ambient Air Temperature For Operation:
- -2-70 °C
- Trip Unit Technology:
- electronic, standard, MicroLogic 3.3 S, LSI
- Suitability For Isolation:
- yes IEC 60947-2
