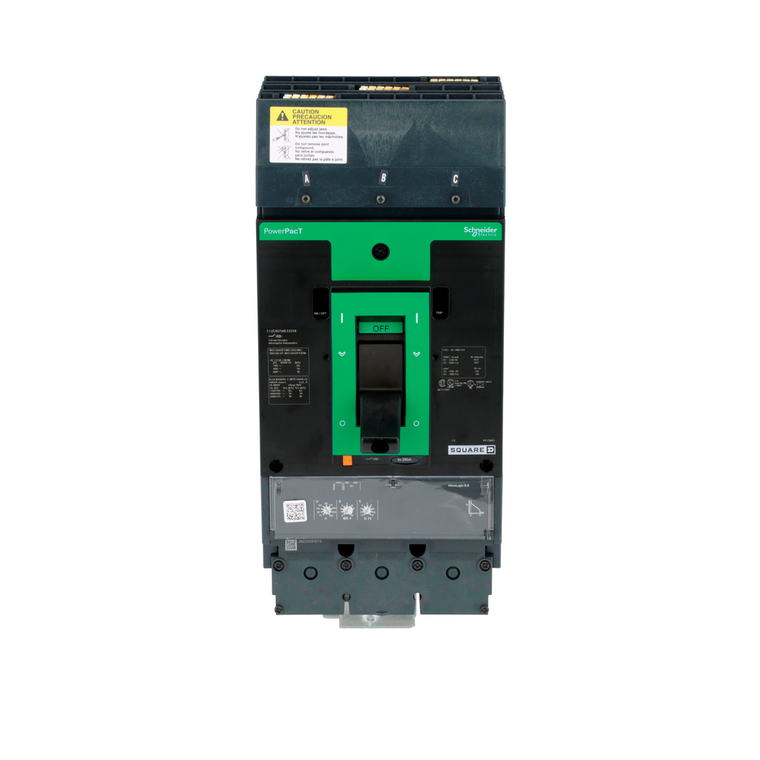

Schneider Electric LGA36250CU31X Molded Case Circuit Breaker 600V 250A

Schneider Electric LGA36250CU31X Molded Case Circuit Breaker 600V 250A

Schneider Electric
SKU:
LGA36250CU31X
|
UPC:
785901166405
Availability:
Contact us to confirm availability and lead times.
$6,240.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 250A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3 trip unit and an LI function. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This circuit breaker has a continuous current rating of 100% with an ABC phase connection. This circuit breaker has a continuous current rating of 100% with an ABC phase connection. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Environmental Disclosure:
ENVPEP2206029EN
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Communication Interface:
Modbus || Ethernet
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information:
Yes
Terminal Identifier:
AL400L61K3
Ambient Air Temperature For Operation:
-2-70 °C
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Range:
PowerPact
Poles Description:
3P
Control Type:
toggle
Device Short Name:
L-Frame
Product Certifications:
UL || CSA || NOM
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Phase Connection:
ABC
Utilisation Category:
category A
Circularity Profile:
ENVEOLI2206029EN
Network Frequency:
50/60 Hz
Suitability For Isolation:
yes IEC 60947-2
Depth:
110 mm
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Trip Unit Technology:
electronic, standard, MicroLogic 3.3, LI
Awg Gauge:
AWG 2...600 kcmil copper || AWG 2...500 kcmil aluminium
Line Rated Current:
250-250 A
Continuous Current Rating:
1
Mounting Support:
bracket
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Trip Unit Name:
MicroLogic 3.3
Mercury Free:
Yes
Ip Degree Of Protection:
front cover IP40
Mounting Mode:
I-Line bracket)
Ambient Air Temperature For Storage:
-50-85 °C
Color:
Black
Product Name:
PowerPact L
Height:
340 mm
Eu Rohs Directive:
Compliant with Exemptions
Width:
140 mm
Wire Stripping Length:
31 mm
Tightening Torque:
50-50 N.m 35-300 mm² (AWG 2...600 kcmil) || 50-50 N.m 35-240 mm² (AWG 2...500 kcmil)
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Pollution Degree:
3 IEC 60947-1
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Electrical Connection:
I-Line connection, line || lugs, load
Product Or Component Type:
circuit breaker
Breaking Capacity Code:
G
Sustainable Offer Status:
Green Premium product
Circuit Breaker Application:
HACR rated
Net Weight:
6.2 kg
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Pvc Free:
Yes
Warranty:
18 months
Mounting Height:
6 in
Device Application:
distribution
