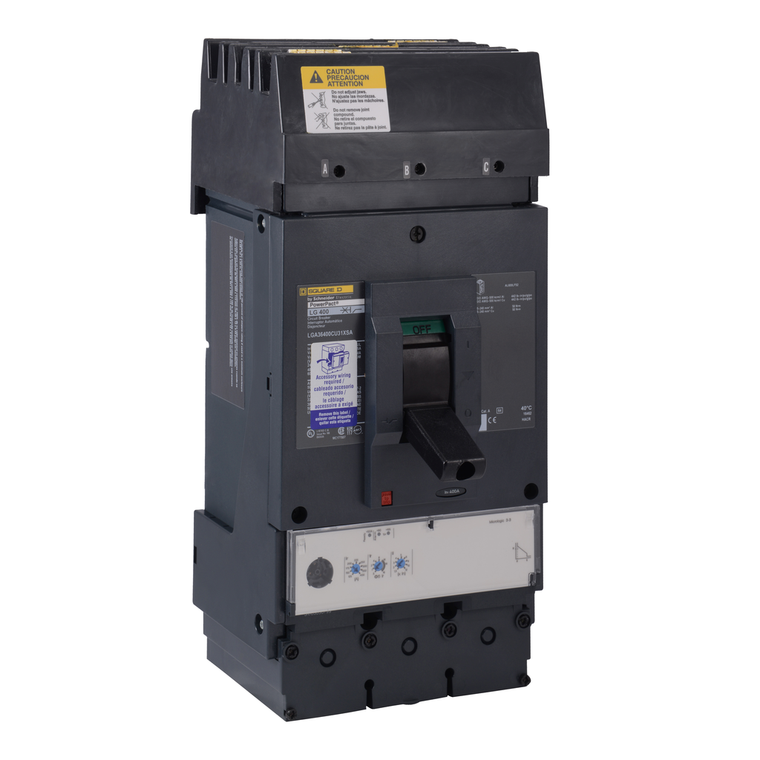

Schneider Electric LGA36400U31XSA Molded Case Circuit Breaker 600V 400A

Schneider Electric LGA36400U31XSA Molded Case Circuit Breaker 600V 400A

Schneider Electric
SKU:
LGA36400U31XSA
|
UPC:
3606486284179
Availability:
Contact us to confirm availability and lead times.
$6,093.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3 trip unit and an LI function. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. This unit includes a factory installed 120VAC shunt trip.
Additional Information
Pvc Free:
Yes
Wire Stripping Length:
31 mm
Sustainable Offer Status:
Green Premium product
Product Certifications:
UL || CSA || NOM
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Awg Gauge:
AWG 3/0...500 kcmil aluminium/copper
Trip Unit Name:
MicroLogic 3.3
Mounting Mode:
I-Line bracket)
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Height:
340 mm
Suitability For Isolation:
yes IEC 60947-2
Environmental Disclosure:
ENVPEP2206029EN
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Circuit Breaker Application:
HACR rated
Device Application:
distribution
Ambient Air Temperature For Storage:
-50-85 °C
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Device Short Name:
L-Frame
Utilisation Category:
category A
Ambient Air Temperature For Operation:
-2-70 °C
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Phase Connection:
ABC
Accessory / Separate Part Type:
shunt trip cover frame
Eu Rohs Directive:
Compliant with Exemptions
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Mounting Support:
bracket
Trip Unit Technology:
electronic, standard, MicroLogic 3.3, LI
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Terminal Identifier:
AL600LF52K3
Product Or Component Type:
circuit breaker
Rohs Exemption Information:
Yes
Electrical Connection:
I-Line connection, line || lugs, load
Circularity Profile:
ENVEOLI2206029EN
Breaking Capacity Code:
G
Network Frequency:
50/60 Hz
Mounting Height:
6 in
Pollution Degree:
3 IEC 60947-1
Warranty:
18 months
Communication Interface:
Modbus || Ethernet
Line Rated Current:
400-400 A
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Range:
PowerPact
Depth:
110 mm
Mercury Free:
Yes
Protection Technology:
current limiter
Product Name:
PowerPact L
Width:
140 mm
Color:
Black
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Tightening Torque:
50-50 N.m 95-240 mm² (AWG 3/0...500 kcmil)
Ip Degree Of Protection:
front cover IP40
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Poles Description:
3P
Net Weight:
6.2 kg
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Control Type:
toggle
Continuous Current Rating:
0.8
