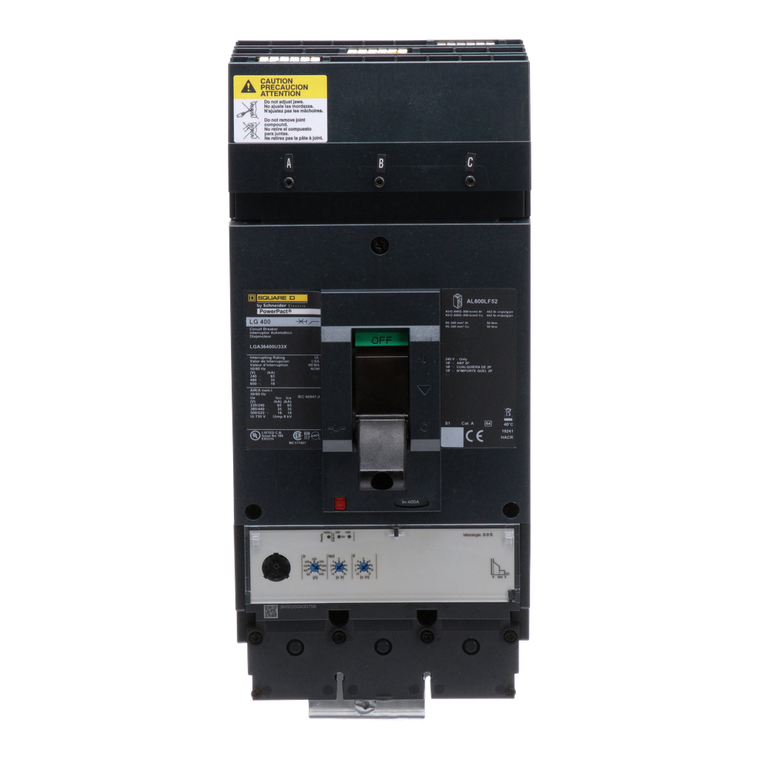

Schneider Electric LGA36400U33X Molded Case Circuit Breaker 600V 400A

Schneider Electric LGA36400U33X Molded Case Circuit Breaker 600V 400A

Schneider Electric
SKU:
LGA36400U33X
|
UPC:
785901809289
Availability:
Contact us to confirm availability and lead times.
$5,969.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3S trip unit and an LSI function. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Electrical Connection:
I-Line connection, line || lugs, load
Mounting Support:
bracket
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Utilisation Category:
category A
Continuous Current Rating:
0.8
Line Rated Current:
400-400 A
Product Certifications:
UL || CSA || NOM
Color:
Black
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Eu Rohs Directive:
Compliant with Exemptions
Suitability For Isolation:
yes IEC 60947-2
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Ip Degree Of Protection:
front cover IP40
Range:
PowerPact
Ambient Air Temperature For Operation:
-2-70 °C
Device Application:
distribution
Mounting Mode:
I-Line bracket)
Circuit Breaker Application:
HACR rated
Wire Stripping Length:
31 mm
Height:
340 mm
Circularity Profile:
ENVEOLI2206029EN
Mounting Height:
6 in
Trip Unit Technology:
electronic, standard, MicroLogic 3.3 S, LSI
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Environmental Disclosure:
ENVPEP2206029EN
Trip Unit Name:
MicroLogic 3.3 S
Tightening Torque:
50-50 N.m 95-240 mm² (AWG 3/0...500 kcmil)
Warranty:
18 months
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Protection Technology:
current limiter
Pvc Free:
Yes
Rohs Exemption Information:
Yes
Poles Description:
3P
Control Type:
toggle
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Awg Gauge:
AWG 3/0...500 kcmil aluminium/copper
Device Short Name:
L-Frame
Mercury Free:
Yes
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Breaking Capacity Code:
G
Net Weight:
6.2 kg
Phase Connection:
ABC
Product Or Component Type:
circuit breaker
Pollution Degree:
3 IEC 60947-1
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Ambient Air Temperature For Storage:
-50-85 °C
Communication Interface:
Modbus || Ethernet
Network Frequency:
50/60 Hz
Product Name:
PowerPact L
Width:
140 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Sustainable Offer Status:
Green Premium product
Depth:
110 mm
Terminal Identifier:
AL600LF52K3
