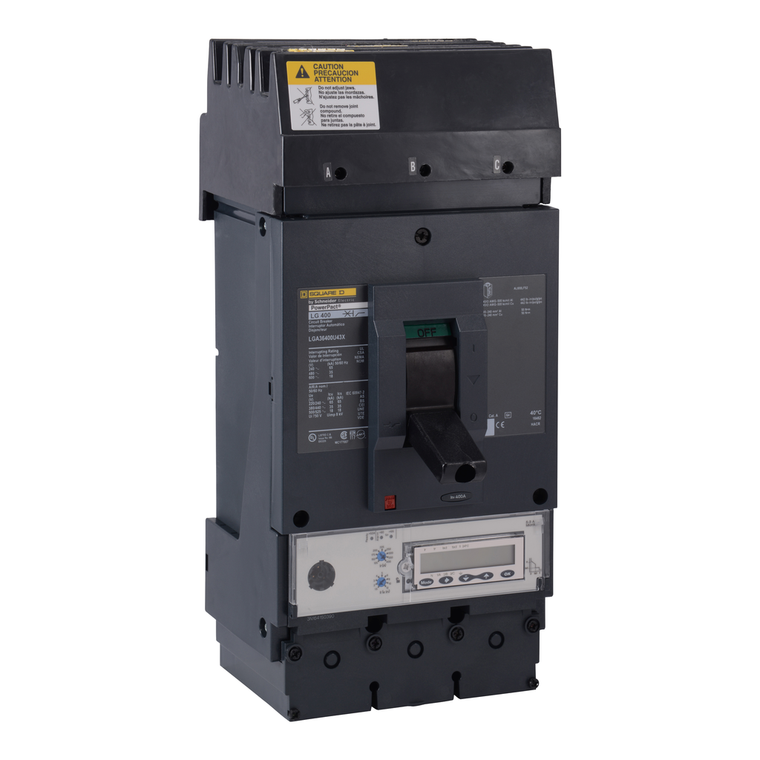

Schneider Electric LGA36600U43X Molded Case Circuit Breaker 600V 600A

Schneider Electric LGA36600U43X Molded Case Circuit Breaker 600V 600A

Schneider Electric
SKU:
LGA36600U43X
|
UPC:
3.60649E+12
Availability:
Contact us to confirm availability and lead times.
$9,279.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 600A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker provides MicroLogic Ammeter with a 5.3A trip unit and an LSI function. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Mounting Height:
6 in
Mercury Free:
Yes
Communication Interface:
Modbus || Ethernet
Trip Unit Name:
MicroLogic 5.3 A
Color:
Black
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Phase Connection:
ABC
Tightening Torque:
50-50 N.m 70-240 mm² (2 x AWG 2/0...500 kcmil)
Trip Unit Technology:
electronic, ammeter, MicroLogic 5.3 A, LSI
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Device Application:
distribution
Circularity Profile:
ENVEOLI2206029EN
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Product Or Component Type:
circuit breaker
Control Type:
toggle
Breaking Capacity Code:
G
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Circuit Breaker Application:
HACR rated
Line Rated Current:
600-600 A
Net Weight:
6.2 kg
Rohs Exemption Information:
Yes
Ip Degree Of Protection:
front cover IP40
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Ambient Air Temperature For Storage:
-50-85 °C
Ambient Air Temperature For Operation:
-2-70 °C
Product Certifications:
UL || CSA || NOM
Protection Technology:
current limiter
Utilisation Category:
category A
Continuous Current Rating:
0.8
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Width:
140 mm
Network Frequency:
50/60 Hz
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Environmental Disclosure:
ENVPEP2206029EN
Depth:
110 mm
Mounting Mode:
I-Line bracket)
Suitability For Isolation:
yes IEC 60947-2
Electrical Connection:
I-Line connection, line || lugs, load
Pollution Degree:
3 IEC 60947-1
Awg Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
Device Short Name:
L-Frame
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Warranty:
18 months
Sustainable Offer Status:
Green Premium product
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Eu Rohs Directive:
Compliant with Exemptions
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Height:
340 mm
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Wire Stripping Length:
31 mm
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Product Name:
PowerPact L
Mounting Support:
bracket
Poles Description:
3P
Pvc Free:
Yes
Range:
PowerPact
Terminal Identifier:
AL600LF52K3
