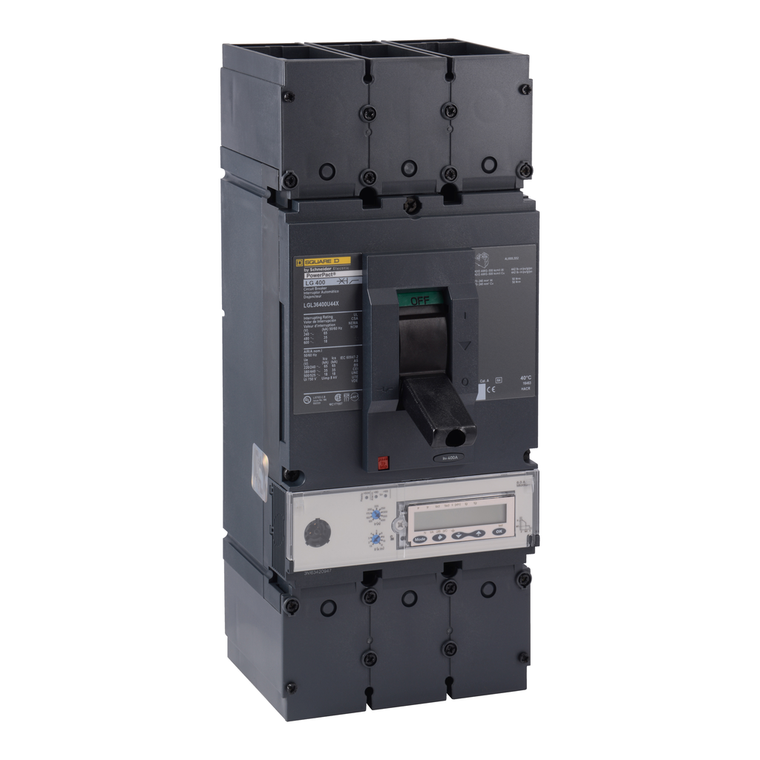

Schneider Electric LGL36400CU44X Motor Circuit Protector 600V 400A

Schneider Electric LGL36400CU44X Motor Circuit Protector 600V 400A

Schneider Electric
SKU:
LGL36400CU44X
|
UPC:
785901005810
Availability:
Contact us to confirm availability and lead times.
$9,441.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker provides MicroLogic Ammeter with a 6.3A trip unit and an LSIG function. This unit has lugs on both the line and load sides. This circuit breaker has a continuous current rating of 100%. This circuit breaker has a continuous current rating of 100%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Terminal Identifier:
AL600LS52K3
Control Type:
toggle
Communication Interface:
Modbus || Ethernet
Product Certifications:
UL || CSA || NOM
Range:
PowerPact
Awg Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
Net Weight:
6.2 kg
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Device Application:
distribution
Ambient Air Temperature For Operation:
-2-70 °C
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Depth:
110 mm
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Warranty:
18 months
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Utilisation Category:
category A
Height:
340 mm
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Mounting Support:
lug
Pollution Degree:
3 IEC 60947-1
Trip Unit Technology:
electronic, ammeter, MicroLogic 6.3 A, LSIG
Color:
Black
Network Frequency:
50/60 Hz
Wire Stripping Length:
31 mm || 61 mm
Eu Rohs Directive:
Compliant with Exemptions
Suitability For Isolation:
yes IEC 60947-2
Pvc Free:
Yes
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Product Name:
PowerPact L
Device Short Name:
L-Frame
Width:
140 mm
Circuit Breaker Application:
HACR rated
Line Rated Current:
400-400 A
Circularity Profile:
ENVEOLI2206029EN
Rohs Exemption Information:
Yes
Sustainable Offer Status:
Green Premium product
Ip Degree Of Protection:
front cover IP40
Poles Description:
3P
Continuous Current Rating:
1
Ambient Air Temperature For Storage:
-50-85 °C
Breaking Capacity Code:
G
Environmental Disclosure:
ENVPEP2206029EN
Electrical Connection:
lugs, line || lugs, load
Mounting Mode:
unit mount lug)
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Mercury Free:
Yes
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Product Or Component Type:
circuit breaker
Tightening Torque:
50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Trip Unit Name:
MicroLogic 6.3 A
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
