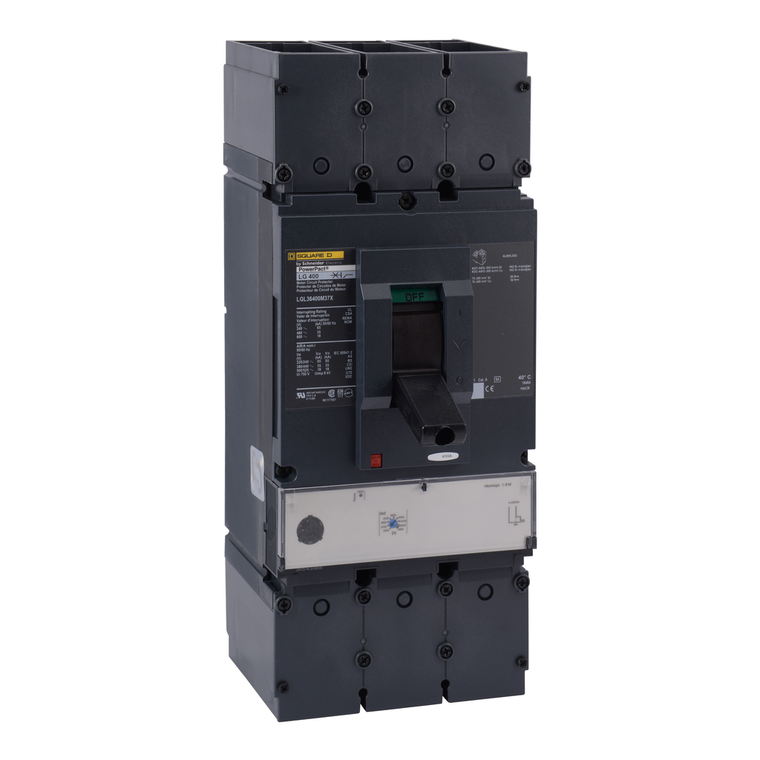

Schneider Electric LGL37030D27 Molded Case Circuit Breaker 500Vdc 500A
Schneider Electric
$6,950.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric LGL37030D27 Molded Case Circuit Breaker 500Vdc 500A
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 300A, 3 pole, circuit breaker has an interrupting rating of 20kA at 500VDC. This circuit breaker has a fixed long time electronic trip unit. This unit has lugs on both the line and load sides. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Depth:
- 110 mm
- Product Certifications:
- UL || CSA || NOM
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Height:
- 340 mm
- Line Rated Current:
- 300-300 A
- Ambient Air Temperature For Operation:
- -2-70 °C
- Range:
- PowerPact
- Breaking Capacity Code:
- G
- Magnetic Tripping Current:
- 750-1500 A
- Suitability For Isolation:
- yes IEC 60947-2
- Environmental Disclosure:
- ENVPEP1406010EN
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- [Ue] Rated Operational Voltage:
- 500 V DC
- Mercury Free:
- Yes
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- Mounting Support:
- lug
- Rohs Exemption Information:
- Yes
- Poles Description:
- 3P
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Pvc Free:
- Yes
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Product Name:
- PowerPact L
- Trip Unit Technology:
- thermal-magnetic
- Ambient Air Temperature For Storage:
- -50-85 °C
- Control Type:
- toggle
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Sustainable Offer Status:
- Green Premium product
- Device Short Name:
- L-Frame
- Electrical Connection:
- lugs, line || lugs, load
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Eu Rohs Directive:
- Compliant with Exemptions
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Product Or Component Type:
- circuit breaker
- Warranty:
- 18 months
- Mounting Mode:
- unit mount lug)
- Ip Degree Of Protection:
- front cover IP40
- Color:
- Black
- Communication Interface:
- Modbus || Ethernet
- Width:
- 140 mm
- Tightening Torque:
- 50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
- Awg Gauge:
- 2 x AWG 2/0...500 kcmil aluminium/copper
- Circuit Breaker Application:
- HACR rated
- Device Application:
- distribution
- Utilisation Category:
- category A
- Terminal Identifier:
- AL600LS52K3
- Pollution Degree:
- 3 IEC 60947-1
- Circularity Profile:
- ENVEOLI1406010EN
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Net Weight:
- 6.2 kg
- Wire Stripping Length:
- 31 mm || 61 mm
