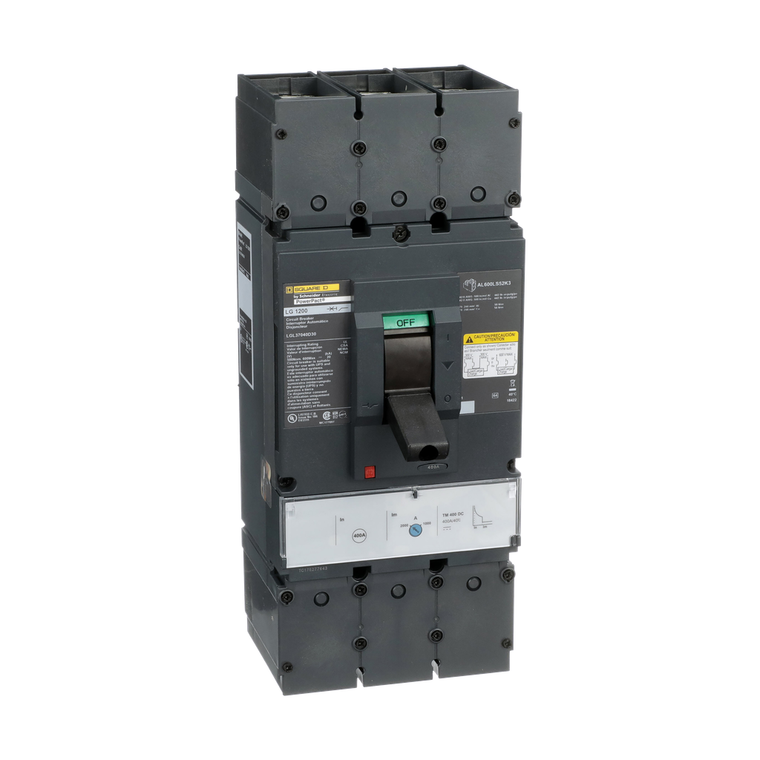

Schneider Electric LGL37040D30 Molded Case Circuit Breaker 480V 250A

Schneider Electric LGL37040D30 Molded Case Circuit Breaker 480V 250A

Schneider Electric
SKU:
LGL37040D30
|
UPC:
7.85902E+11
Availability:
Contact us to confirm availability and lead times.
$6,950.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 20kA at 500VDC. This circuit breaker has a fixed long time electronic trip unit. This unit has lugs on both the line and load sides. This circuit breaker has a continuous current rating of 80%. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Terminal Identifier:
AL600LS52K3
Eu Rohs Directive:
Compliant with Exemptions
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Circularity Profile:
ENVEOLI1406010EN
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Protection Technology:
current limiter
Tightening Torque:
50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil) || 50-50 N.m 35-300 mm² (AWG 2...600 kcmil)
Device Short Name:
L-Frame
Awg Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
Communication Interface:
Modbus || Ethernet
Control Type:
toggle
Range:
PowerPact
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Warranty:
18 months
Depth:
110 mm
Mounting Mode:
unit mount lug)
Environmental Disclosure:
ENVPEP1406010EN
Magnetic Tripping Current:
1000-2000 A
Device Application:
distribution
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Trip Unit Technology:
thermal-magnetic
Mercury Free:
Yes
Product Certifications:
UL || CSA || NOM
Pvc Free:
Yes
Line Rated Current:
400-400 A
Height:
340 mm
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Local Signalling:
switched off (OFF) 1 trip indicator green)
Ambient Air Temperature For Operation:
-2-70 °C
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Breaking Capacity Code:
G
Poles Description:
3P
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Width:
140 mm
Product Name:
PowerPact L
Color:
Black
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Utilisation Category:
category A
Electrical Connection:
lugs, line || lugs, load
Pollution Degree:
3 IEC 60947-1
Ambient Air Temperature For Storage:
-50-85 °C
Wire Stripping Length:
31 mm || 61 mm
Circuit Breaker Application:
HACR rated
Net Weight:
6.2 kg
Mounting Support:
lug
Product Or Component Type:
circuit breaker
Sustainable Offer Status:
Green Premium product
[Ue] Rated Operational Voltage:
500 V DC
Ip Degree Of Protection:
front cover IP40
Rohs Exemption Information:
Yes
Suitability For Isolation:
yes IEC 60947-2
