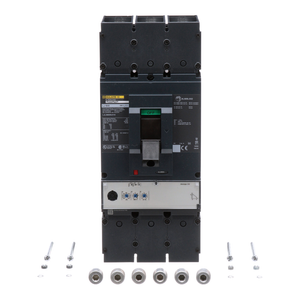

Schneider Electric LGL37060D33 Molded Case Circuit Breaker 480V 400A

Schneider Electric LGL37060D33 Molded Case Circuit Breaker 480V 400A

Schneider Electric
SKU:
LGL37060D33
|
UPC:
785901942894
Availability:
Contact us to confirm availability and lead times.
$8,700.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 600A, 3 pole, circuit breaker has an interrupting rating of 20kA at 500VDC. This circuit breaker has a fixed long time electronic trip unit. This unit has lugs on both the line and load sides. This circuit breaker has a continuous current rating of 80%. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Warranty:
18 months
Pollution Degree:
3 IEC 60947-1
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Mounting Support:
lug
Color:
Black
Depth:
110 mm
Local Signalling:
switched off (OFF) 1 trip indicator green)
Mercury Free:
Yes
Trip Unit Technology:
thermal-magnetic
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Width:
140 mm
Device Short Name:
L-Frame
Tightening Torque:
50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
Device Application:
distribution
Eu Rohs Directive:
Compliant with Exemptions
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Environmental Disclosure:
ENVPEP1406010EN
Wire Stripping Length:
31 mm || 61 mm
Height:
340 mm
Suitability For Isolation:
yes IEC 60947-2
Magnetic Tripping Current:
1500-3000 A
Net Weight:
6.2 kg
Utilisation Category:
category A
Control Type:
toggle
Terminal Identifier:
AL600LS52K3
Poles Description:
3P
Product Certifications:
UL || CSA || NOM
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation:
-2-70 °C
Ip Degree Of Protection:
front cover IP40
Range:
PowerPact
Communication Interface:
Modbus || Ethernet
Mounting Mode:
unit mount lug)
Electrical Connection:
lugs, line || lugs, load
Pvc Free:
Yes
Circularity Profile:
ENVEOLI1406010EN
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Product Name:
PowerPact L
Ambient Air Temperature For Storage:
-50-85 °C
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information:
Yes
Sustainable Offer Status:
Green Premium product
Breaking Capacity Code:
G
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
[Ue] Rated Operational Voltage:
500 V DC
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Product Or Component Type:
circuit breaker
Awg Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
Circuit Breaker Application:
HACR rated
